INMATEC PN LASER PACK

Request a quoteMore information

A system concept for laser cutting: on-site N₂ shielding gas generation for stable cuts, lower costs, and no supply interruptions.

Technology: PSA (Pressure Swing Adsorption)
Nitrogen flow: 22–145 Nm³/h
N₂ purity: up to 99.9995% (5.5)
Technology: PSA (Pressure Swing Adsorption)
Nitrogen flow: 22–145 Nm³/h
N₂ purity: up to 99.9995% (5.5)
Request a quoteMore information
Standardna oprema 11 · Opcije 0 · Dodatna oprema 0
  • PN nitrogen generatorPSA nitrogen generator for on-site N₂ production, optimized for laser cutting applications.
  • Hydrogen catalystCatalyst for reducing residual oxygen content and achieving very high nitrogen purity.
  • High-pressure boosterOil-free high-pressure booster to ensure stable nitrogen pressure for the laser process.
  • N₂ product tankIntegrated storage tank for generated nitrogen and stable system supply.
  • N₂ buffer vesselBuffer vessel for balancing demand and ensuring constant flow under load changes.
  • Remote monitoring (Connect)Remote monitoring system for real-time operating status tracking.
  • Multilingual touch control panelTouch control panel with nitrogen measurement and an intuitive user interface.
  • Stainless steel valve technologyLow-maintenance stainless steel valve technology for long service life.
  • Activated carbon molecular sieveDurable activated carbon with long service life for reliable gas separation.
  • Inlet and outlet filtrationSystem inlet and outlet filtration for component protection and high-quality N₂ output.
  • Long-term data storageOperating data storage for analysis, traceability, and process optimization.
ParameterPN LASER PACK 20*PN LASER PACK 40*PN LASER PACK 50*PN LASER PACK 85PN LASER PACK 120PN LASER PACK 145
N₂ purity [% (grade)]up to 99.9995% (5.5)
Nitrogen quantity at 5.5 [Nm³/h]22404985120145
Platform dimensions (L × W × H) [mm]2.200 × 2.000 × 2.3502.200 × 2.000 × 2.4202.200 × 2.000 × 2.7552.200 × 2.000 × 2.6104.400 × 2.000 × 2.7004.400 × 2.000 × 2.950

Nitrogen anytime, anywhere

On-site N₂ production directly at your facility—no delivery lead times and no logistics dependency.

Up to 70% lower costs vs. liquid nitrogen

Reduce shielding gas costs in laser cutting with an on-site solution (compared to liquid N₂ supply).

No supply bottlenecks

No more delivery delays, urgent ordering, or risk of running out of gas at critical production moments.

Energy-efficient process, lower carbon footprint

Efficient nitrogen generation reduces energy consumption and environmental impact.

BAFA co-funding possible

Funding support via BAFA may be available for the system (subject to conditions and eligibility).

Metal laser cutting with nitrogen

Laser cutting

Primary application

Nitrogen generation for shielding gas in metal laser cutting. Ensures clean, oxidation-free edges, process stability, and repeatable cut quality.

Nitrogen and oxygen generators

Tell us your requirements and we will propose the right configuration.

Fill in the short form and we will prepare a generator proposal based on flow rate, purity, pressure, and operating mode. If needed, we also include dryer, filtration, and storage tank.

Sizing based on flow rate, pressure, and required purity
Proposal of filtration, drying, and storage tank for stable gas supply
Delivery, installation, commissioning, and service
Contact form
* required fields
Your message is sent directly to our email.
Klic EmailView solutions
Where to find us
Directions
Pod lipami 4 · 1370 Logatec, Slovenija

Other PSA nitrogen generators

Explore other PSA nitrogen generator series from our offer.

INMATEC PN Series Standard

INMATEC – PN Series (Standard)

PSA standard

Core PSA nitrogen generator line with continuous monitoring and parameter control for high-quality on-site nitrogen supply.

Več o napravi →
INMATEC PN Series AutoPure

INMATEC – PN Series AutoPure

AutoPure technology

PN generators with AutoPure technology, easy operation, and enhanced automation for stable and efficient nitrogen generation.

Več o napravi →

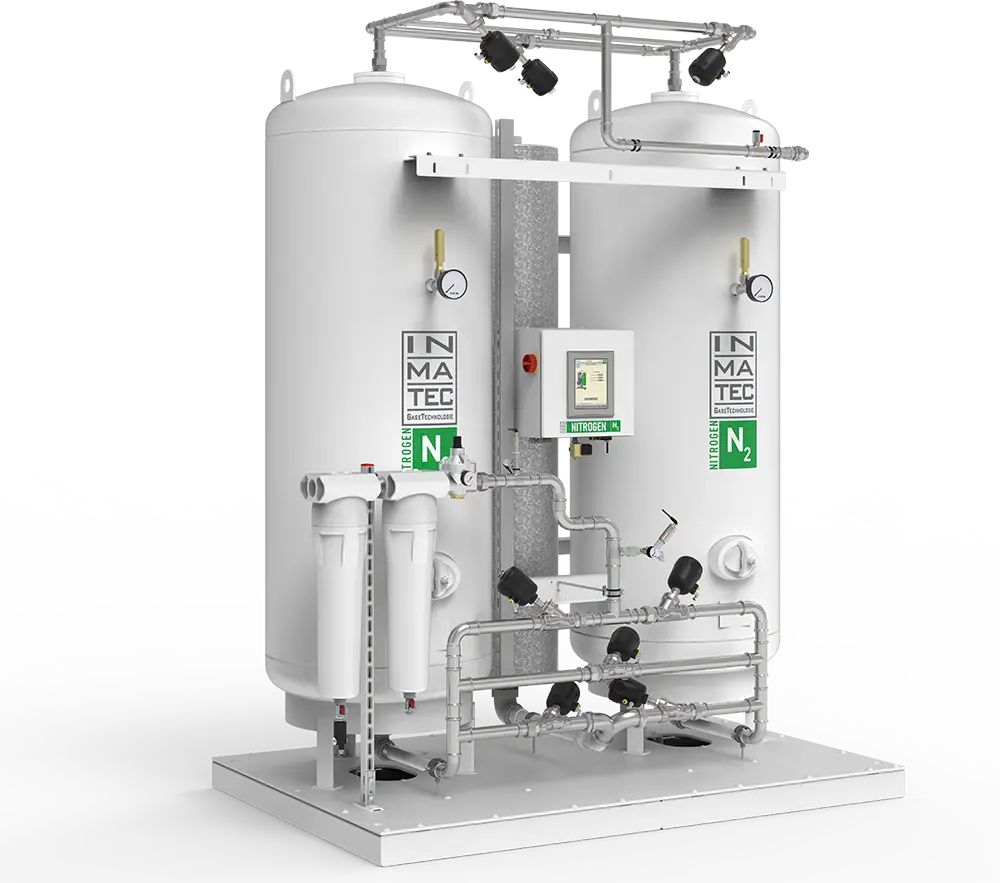

INMATEC PN Series Energy Efficiency Control
