AZUD

Disc and screen filters

AZUD water filtration: self-cleaning filters with non-stop flow

AZUD HELIX automatic disc filters and AZUD LUXON screen filters remove sand, silt, algae and other particles from water. They clean themselves and keep supplying filtered water throughout the cleaning cycle.

View equipmentSend an enquiry
AZUD HELIX AUTOMATIC 4DCL disc filtration station
Filtration degree
5–1,000µm
Max. flow of a single unit
1,065m³/h
Connections
2″–16″
AZUD warranty on HELIX
5years

Two technologies

Discs or screen?

AZUD makes both types of self-cleaning filter. The choice depends mainly on the type of particles in the water, the flow rate and the filtration degree required.

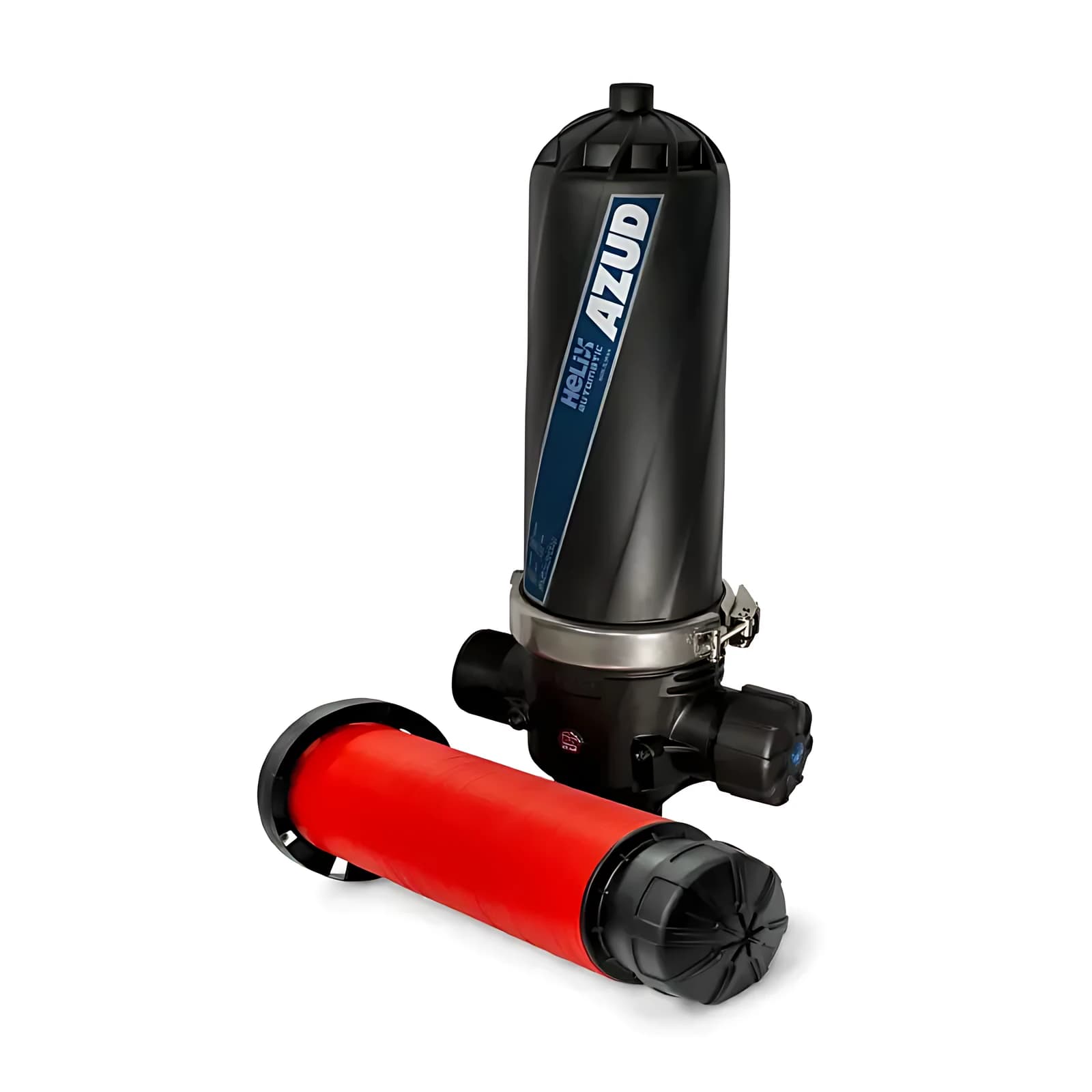

AZUD HELIX disc filter with disc cartridge

Disc filters

AZUD HELIX AUTOMATIC

A stack of grooved discs works as a depth filter, retaining particles on the surface and inside the stack. The patented AZUD HELIX device spins the water so that heavier particles are separated before they reach the discs – which means fewer backwashes.

  • AZUD 3D discs (MG or WS technology) for surface and depth filtration
  • Sequential backwash of each filter – filtered water supply never stops
  • AZUD DLP technology: efficient self-cleaning at low operating pressure
  • Corrosion-resistant polymers; tool-free maintenance

Best for: organic particles, algae and biofilm, water with fertilisers; finest filtration down to 5 µm (FT200 AA).

Suction nozzle on the screen of an AZUD LUXON filter

Screen filters

AZUD LUXON

An AISI 316L stainless steel screen retains particles on its inner side. When the differential pressure reaches the set point, the drain opens and suction nozzles travel along the screen in a helical path, sucking the dirt away.

  • Screens from 80 to 1,000 µm (LDB with stainless steel support from 10 µm)
  • Low-consumption AZUD suction nozzles
  • Carbon steel housing with epoxy-polyester coating
  • Control unit included

Best for: inorganic particles (sand, silt, rust) and high flow rates in a small footprint – up to 1,065 m³/h from one unit.

Equipment

AZUD equipment we supply

Seven series for flow rates from 21 to 1,065 m³/h per unit. All of them clean automatically without interrupting the water supply.

HELIX AUTOMATIC – disc filters

AZUD HELIX AUTOMATIC 200 station with three disc filters

AZUD HELIX AUTOMATIC 200

Ø2″ disc filters for small and medium flows

Self-cleaning station with 1 to 8 Ø2″ disc filters and Ø2″ 3-way backwash valves. Removes inorganic and organic particles; the filters are backwashed in sequence, so the supply of filtered water is continuous.

Max. flow
24–192 m³/h
Filtration
100–400 µm
Number of filters
1–8 × Ø2″
Filtering surface
1,620–12,960 cm²
Connections
Ø2″ – Ø8″
Nominal pressure
PN10
  • Agriculture
  • Landscaping
  • Residential
Technical sheet (PDF)Enquire
Models and flow rates (8)
ModelFiltersArea (cm²)Max. flow (m³/h)I/O manifold
20111,620242″
20223,240483″
20334,860724″
20446,480966″
20558,1001206″
20669,7201446″
207711,3401606″
208812,9601928″

Max. flow with 130 µm discs. The AZUD FBC controller is ordered separately. Source: AZUD technical sheet.

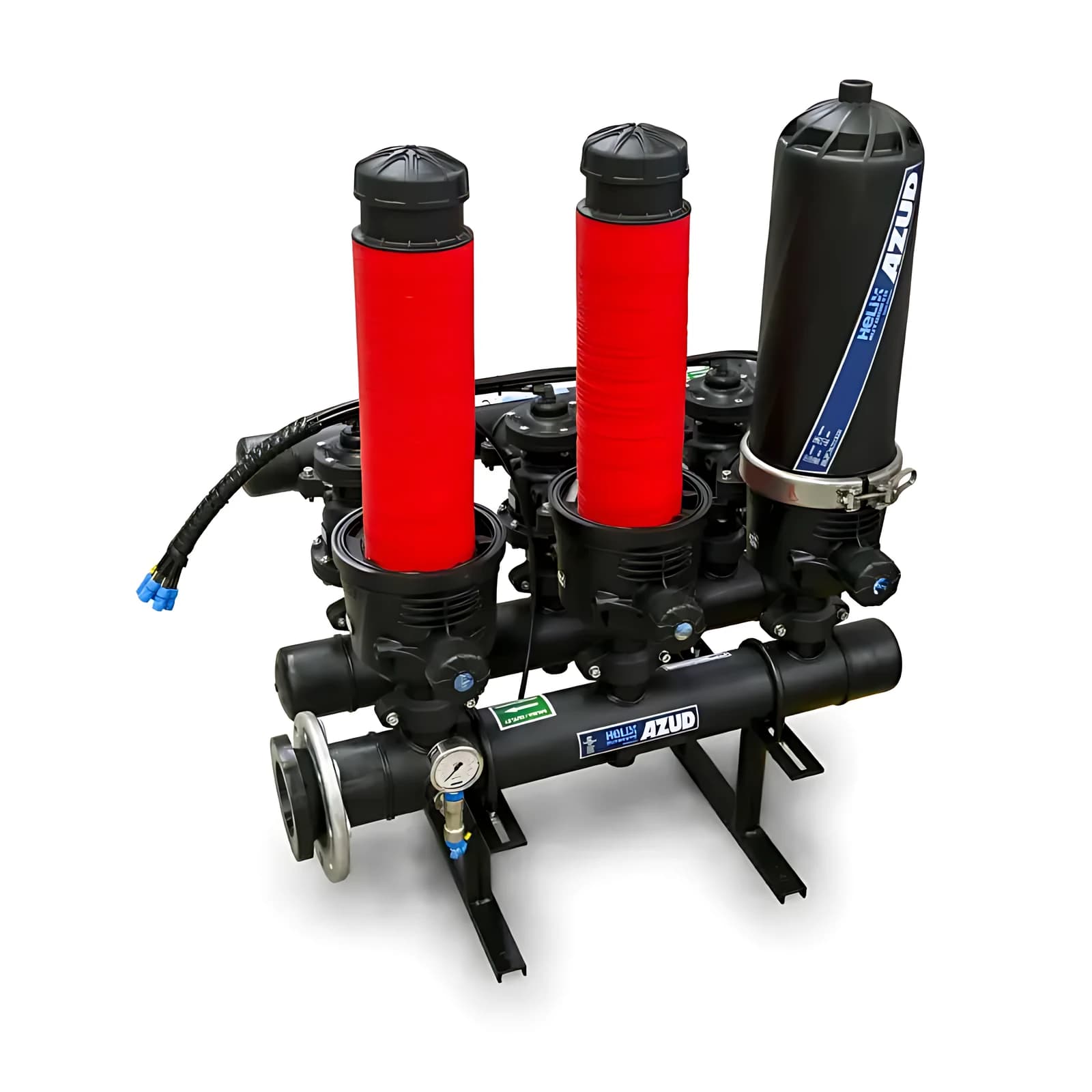

AZUD HELIX AUTOMATIC 300 station with three disc filters

AZUD HELIX AUTOMATIC 300

Ø3″ disc filters for higher flows

Same principle as the 200 series, with larger Ø3″ filters and Ø3″ backwash valves: 2 to 8 filters and up to 220 m³/h. Suited to water with a high particle load and organic fertilisers.

Max. flow
64–220 m³/h
Filtration
100–400 µm
Number of filters
2–8 × Ø3″
Filtering surface
3,240–12,960 cm²
Connections
Ø4″ – Ø8″
Nominal pressure
PN10
  • Agriculture
  • Landscaping
  • Residential
Technical sheet (PDF)Enquire
Models and flow rates (8)
ModelFiltersArea (cm²)Max. flow (m³/h)I/O manifold
30223,240644″
30334,860724″
30446,4801286″
30558,1001446″
30669,7201446″
30669,7201928″
307711,3402208″
308812,9602208″

Max. flow with 130 µm discs. The AZUD FBC controller is ordered separately. Source: AZUD technical sheet.

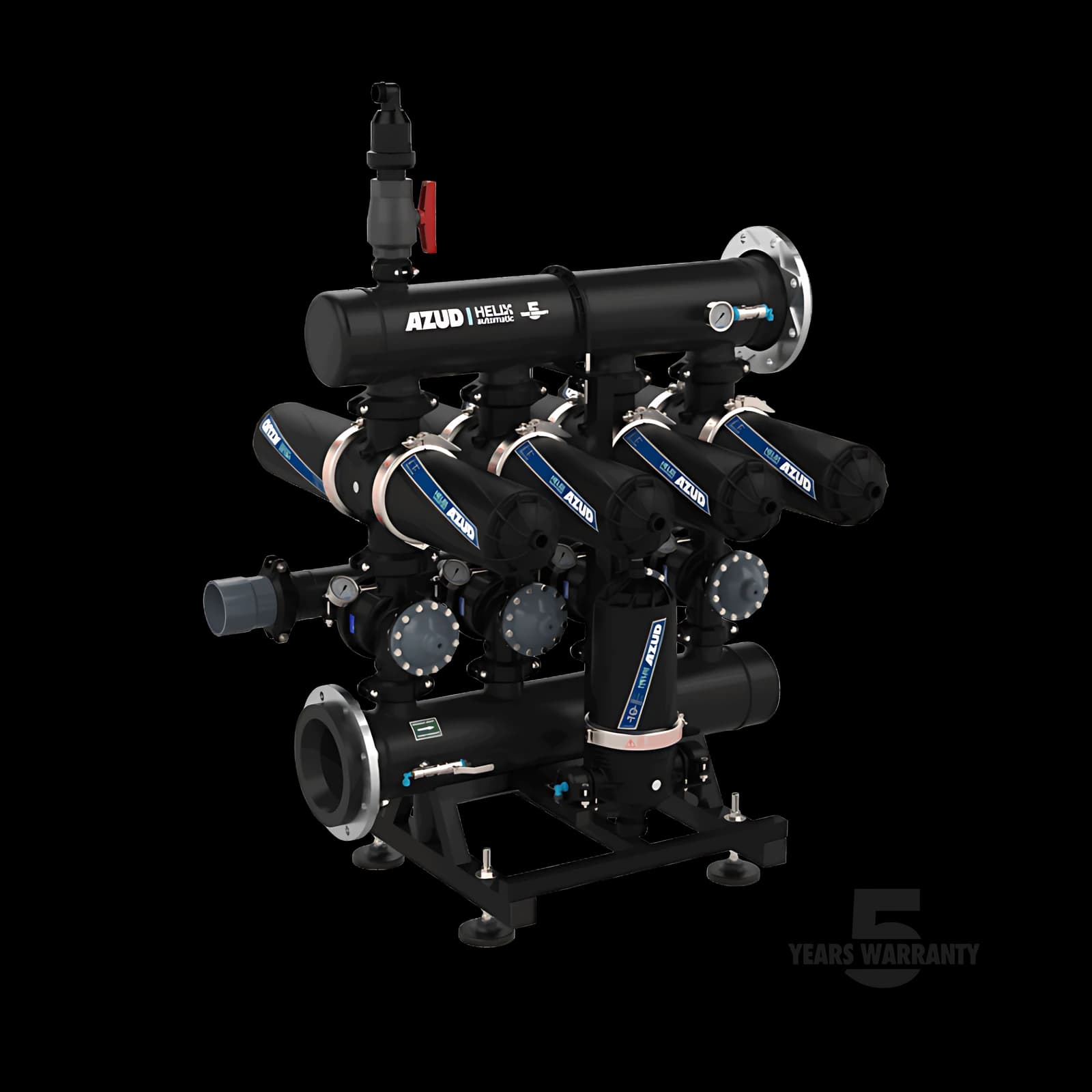

AZUD HELIX AUTOMATIC 4DCL station with double disc filters

AZUD HELIX AUTOMATIC 4DCL

Double Ø4″ filters for up to 624 m³/h

Station with 3 to 12 double Ø4″ disc filters and Ø3″ backwash valves on a Ø6″ to Ø12″ manifold. A large filtering surface in a small footprint for large systems.

Max. flow
156–624 m³/h
Filtration
100–400 µm
Number of filters
3–12 × double Ø4″
Filtering surface
9,720–38,880 cm²
Connections
Ø6″ – Ø12″
Nominal pressure
PN10
  • Agriculture
  • Landscaping
  • Residential
Technical sheet (PDF)Enquire
Models and flow rates (10)
ModelFiltersArea (cm²)Max. flow (m³/h)I/O manifold
4DCL339,7201566″
4DCL4412,9602088″
4DCL5516,2002408″
4DCL6619,44031210″
4DCL7722,68036410″
4DCL8825,92038010″
4DCL9929,16046812″
4DCL101032,40052012″
4DCL111135,64057212″
4DCL121238,88062412″

Max. flow with 130 µm discs. The AZUD FBC controller is ordered separately. Source: AZUD technical sheet.

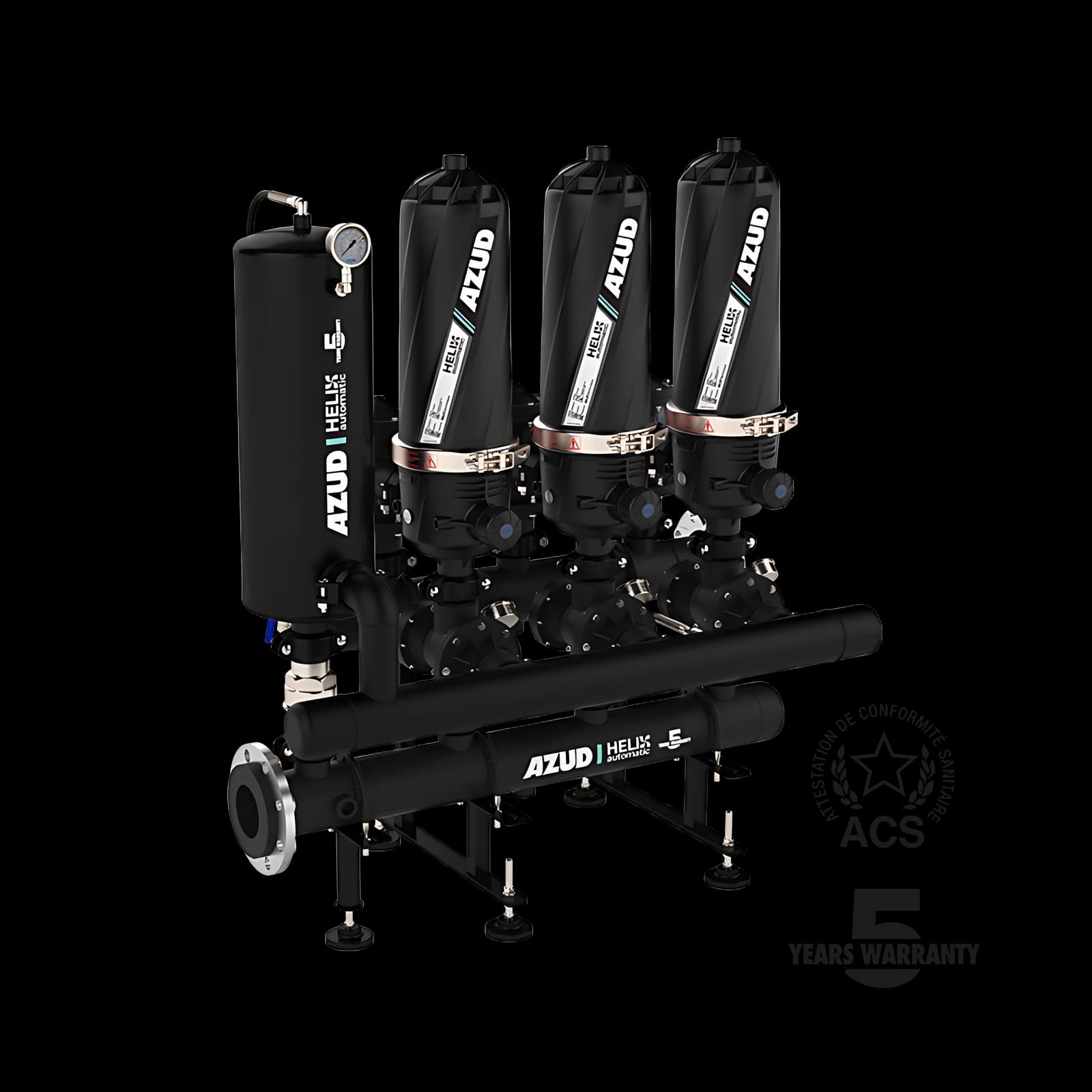

AZUD HELIX AUTOMATIC FT200 AA station with disc filters and air tank

AZUD HELIX AUTOMATIC FT200 AA

Air-assisted backwash, filtration down to 5 µm

Ø2″ disc filters whose backwash is assisted by compressed air. Designed for water with high loads of organic and sticky particles: cleaning is more effective and uses less water. The SW version handles saline water (6,000–55,000 mg/l TDS).

Max. flow
21–470 m³/h
Filtration
5–400 µm
Number of filters
1–24 × Ø2″
Filtering surface
1,620–38,880 cm²
Connections
Ø2″ – Ø12″
Nominal pressure
PN10
  • Industrial
  • Municipal
  • Mining
  • Agriculture
  • Landscaping
  • Residential
Technical sheet (PDF)Enquire
Models and flow rates (17)
ModelFiltersArea (cm²)Max. flow (m³/h)I/O manifold
FT201 AA11,620212″
FT202 AA23,240423″
FT203 AA34,860633″ / 4″
FT204 AA46,480844″ / 6″
FT205 AA58,1001054″ / 6″
FT206 AA69,7201266″
FT207 AA711,3401476″
FT208 AA812,9601686″ / 8″
FT209 AA914,5801896″ / 8″
FT210 AA1016,2002106″ / 8″
FT210D AA1016,20022010″/8″
FT212D AA1219,44026410″/8″
FT214D AA1422,68030812″/8″
FT216D AA1625,92035212″/8″
FT218D AA1829,16039612″/10″
FT220D AA2032,40044012″/10″
FT224D AA2438,88047012″/10″

Max. flow with 130 µm discs. The AZUD FBC controller is ordered separately. Source: AZUD technical sheet.

LUXON – screen filters

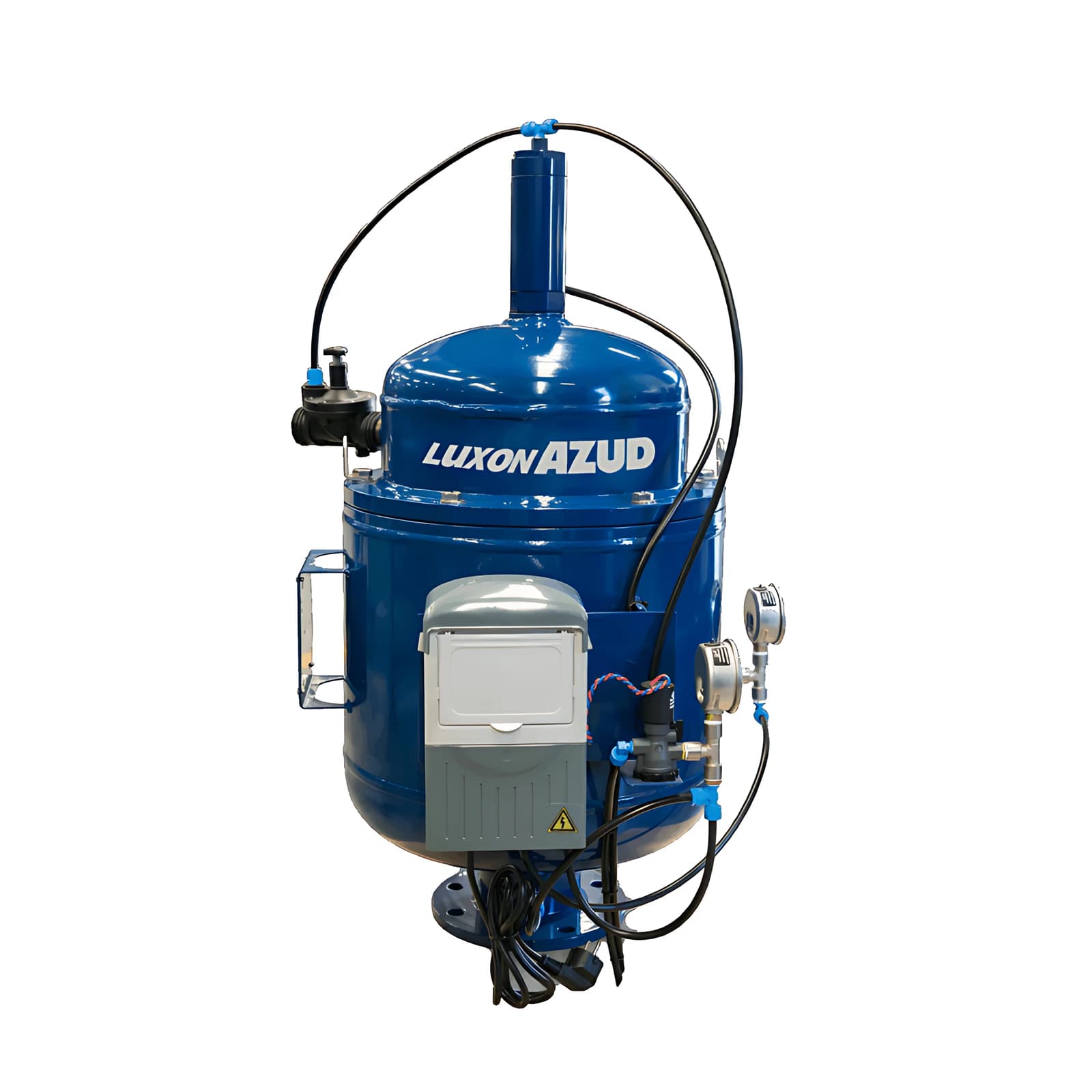

AZUD LUXON LCA vertical screen filter

AZUD LUXON LCA

Hydraulic drive, battery or 220 V control

Vertical self-cleaning filter with an AISI 316L stainless steel screen. The suction nozzles are driven by the water itself, so no electric motor is needed. Carbon steel housing, high capacity in a small footprint.

Max. flow
30–170 m³/h
Filtration
80–1,000 µm
Drive
Hydraulic, vertical
Filtering surface
1,600–4,800 cm²
Connections
Ø2″ – Ø6″
Nominal pressure
PN10
  • Industrial
  • Mining
  • Agriculture
  • Landscaping
  • Residential
Technical sheet (PDF)Enquire
Models and flow rates (5)
ModelConnectionArea (cm²)Max. flow (m³/h)Flush water (l)
LCA 1650 R/22″1,6003042
LCA 1650 R/33″1,6005042
LCA 2400 M/44″2,4009050.4
LCA 4800 M/44″4,80090112
LCA 4800 M/66″4,800170112

Max. recommended flow with a 125 µm screen and good water quality; the last column is the water used per flushing cycle. Source: AZUD technical sheet.

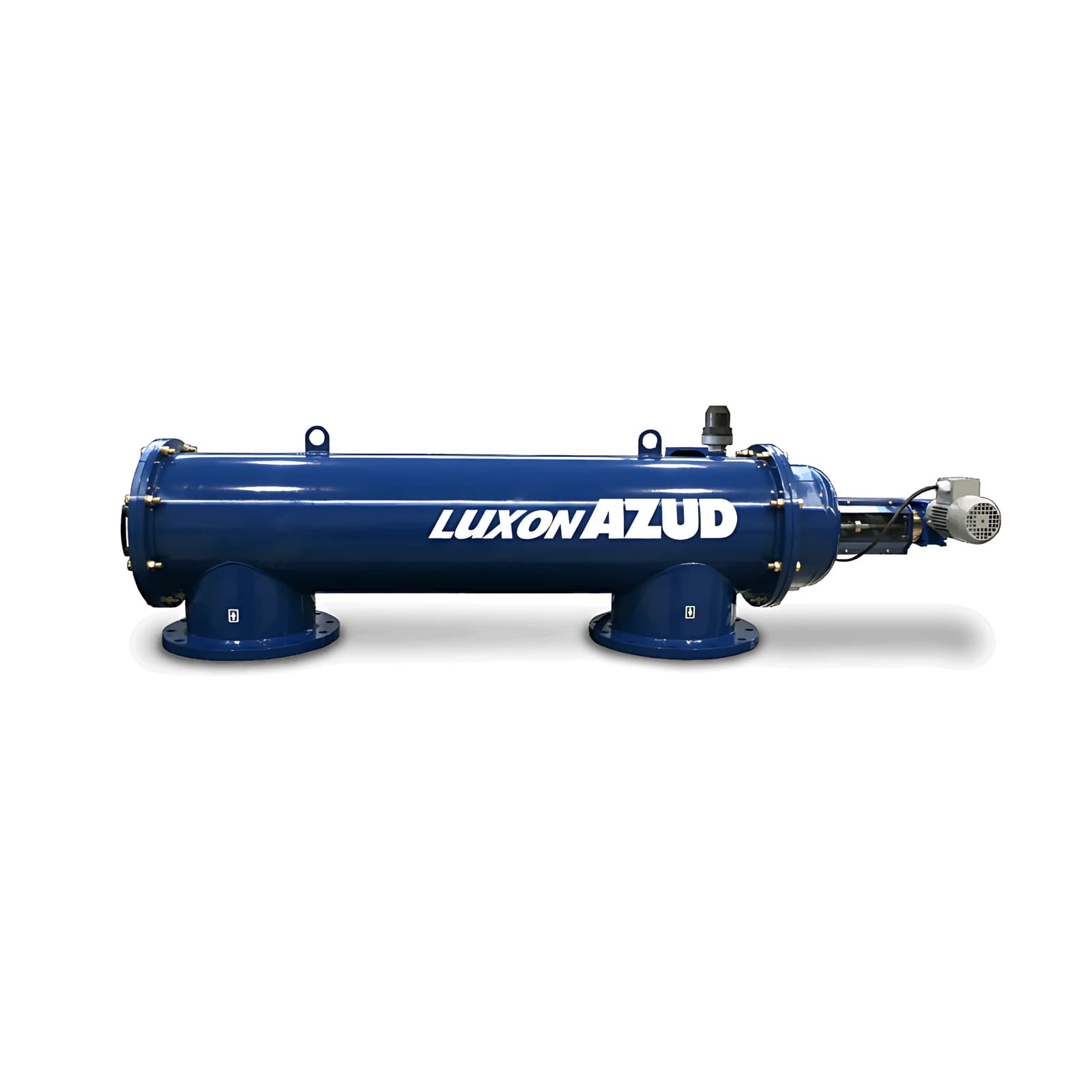

AZUD LUXON MFE horizontal screen filter

AZUD LUXON MFE

Electric horizontal filter up to 500 m³/h

Horizontal filter with electrically driven suction nozzles, a 6 mm pre-filter and a hinged lid for easier maintenance. AISI 316L screen, AISI 304 cleaning mechanism.

Max. flow
90–500 m³/h
Filtration
80–1,000 µm
Drive
Electric, horizontal
Filtering surface
4,800–12,000 cm²
Connections
Ø4″ – Ø10″
Nominal pressure
PN10
  • Industrial
  • Mining
  • Agriculture
  • Landscaping
  • Residential
Technical sheet (PDF)Enquire
Models and flow rates (6)
ModelConnectionArea (cm²)Max. flow (m³/h)Flush water (l)
MFE 4800 M/44″4,80090112
MFE 7200 M/66″7,200170168
MFE 7200 M/88″7,200300168
MFE 9600 M/88″9,600300224
MFE 9600 M/1010″9,600451224
MFE 12000 M/1010″12,000500280

Max. recommended flow with a 125 µm screen and good water quality; the last column is the water used per flushing cycle. Source: AZUD technical sheet.

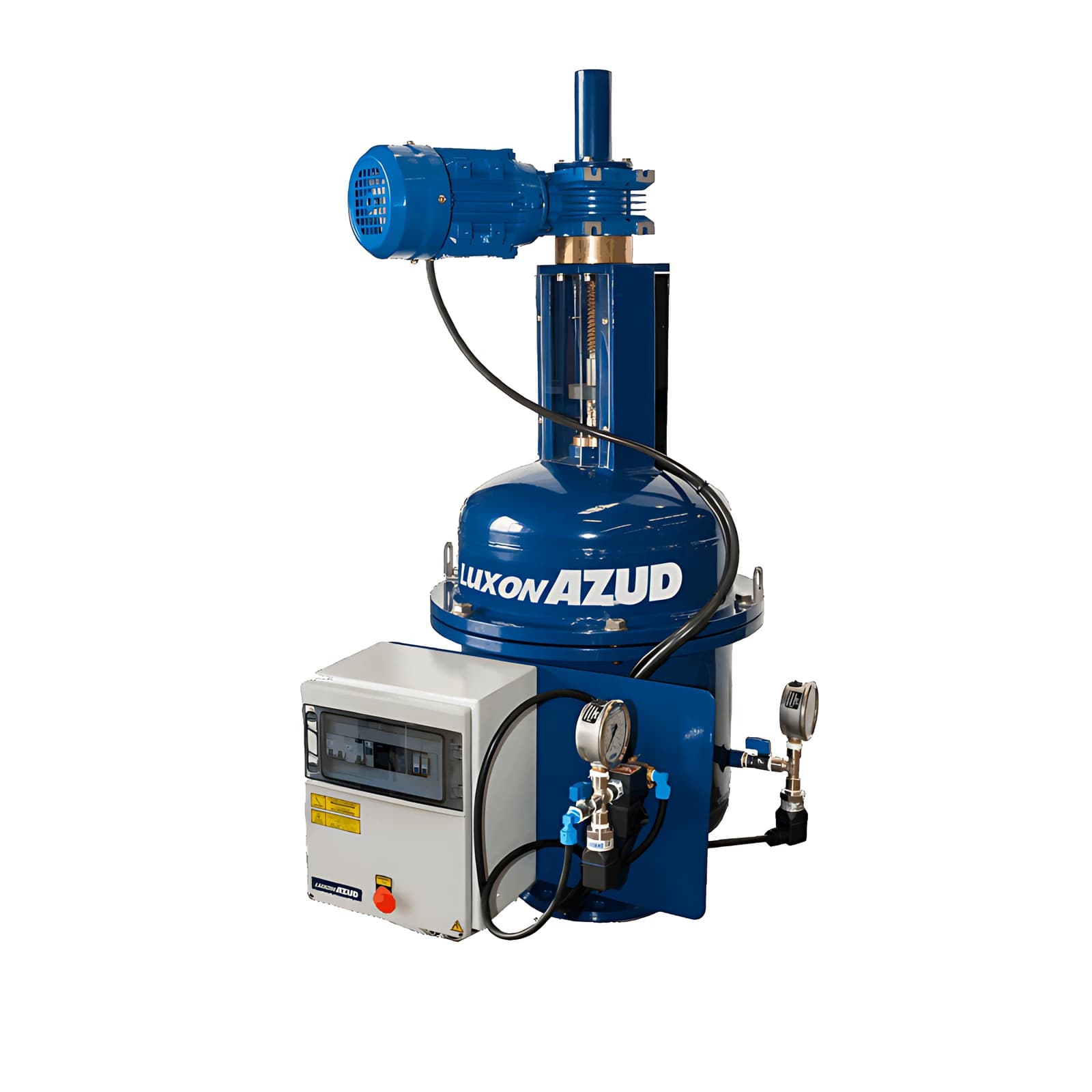

AZUD LUXON LDB vertical screen filter with control box

AZUD LUXON LDB

Electric vertical filter up to 1,065 m³/h

The largest LUXON series: Ø2″ to Ø16″ connections and up to 21,300 cm² of filtering surface. Available with polypropylene or stainless steel screen support, in PN10 or PN16 and for saline water.

Max. flow
30–1,065 m³/h
Filtration
80–1,000 µm
Drive
Electric, vertical
Filtering surface
1,600–21,300 cm²
Connections
Ø2″ – Ø16″
Nominal pressure
PN10 / PN16
  • Industrial
  • Mining
  • Agriculture
  • Landscaping
  • Residential
Technical sheet (PDF)Enquire
Models and flow rates (20)
ModelConnectionArea (cm²)Max. flow (m³/h)Flush water (l)
LDB 1650 R/22″1,6003016
LDB 1650 R/33″1,6005016
LDB 2400 M/44″2,4009019.8
LDB 4800 M/66″4,80017052.5
LDB 7400 M/88″7,350300112.5
LDB 9800 M/88″9,800300145
LDB 12300 M/1010″12,250500180
LDB 1850 S/22″1,7603016
LDB 1850 S/33″1,7605016
LDB 2700 S/44″2,6509019.8
LDB 5400 S/66″5,38017052.5
LDB 5400 S/88″5,38027052.5
LDB 8000 S/88″8,000300112.5
LDB 10600 S/108″10,600500145
LDB 13200 S/1010″13,210500180
LDB 13200 S/1212″13,210660180
LDB 16500 S/1212″16,500700145
LDB 16500 S/1414″16,500825145
LDB 21300 S/1414″21,300850180
LDB 21300 S/1616″21,3001,065180

Max. recommended flow with a 125 µm screen and good water quality; the last column is the water used per flushing cycle. Source: AZUD technical sheet.

Comparison

Which unit fits?

A quick overview of all seven series. For an exact selection, send us the flow rate, pressure and water data.

UnitCleaningFlow (m³/h)Filtration (µm)ConnectionsHousingBest for
HELIX AUTOMATIC – disc filters
HELIX AUTOMATIC 200Water backwash24–192100–400Ø2″ – Ø8″PolymerIrrigation, poor-quality water, organic fertilisers
HELIX AUTOMATIC 300Water backwash64–220100–400Ø4″ – Ø8″PolymerLarger irrigation systems, high particle loads
HELIX AUTOMATIC 4DCLWater backwash156–624100–400Ø6″ – Ø12″PolymerLarge systems, heavy particle loads
HELIX AUTOMATIC FT200 AAWater + air backwash21–4705–400Ø2″ – Ø12″PolymerIndustry, municipal, cooling systems, membrane protection
LUXON – screen filters
LUXON LCASuction nozzles, hydraulic drive30–17080–1,000Ø2″ – Ø6″Carbon steelInorganic particles, flows up to 170 m³/h
LUXON MFESuction nozzles, electric motor90–50080–1,000Ø4″ – Ø10″Carbon steelLow ceilings, high flows, pre-filtration
LUXON LDBSuction nozzles, electric motor30–1,06580–1,000Ø2″ – Ø16″Carbon steelGroundwater, cooling systems, large industrial flows

Flow: max. flow of one unit, from the smallest to the largest model (HELIX at 130 µm, LUXON at 125 µm). Source: AZUD technical sheets.

How it works

How the filters clean themselves

The controller monitors the differential pressure between inlet and outlet. When the filter clogs, it starts cleaning – and the water keeps flowing.

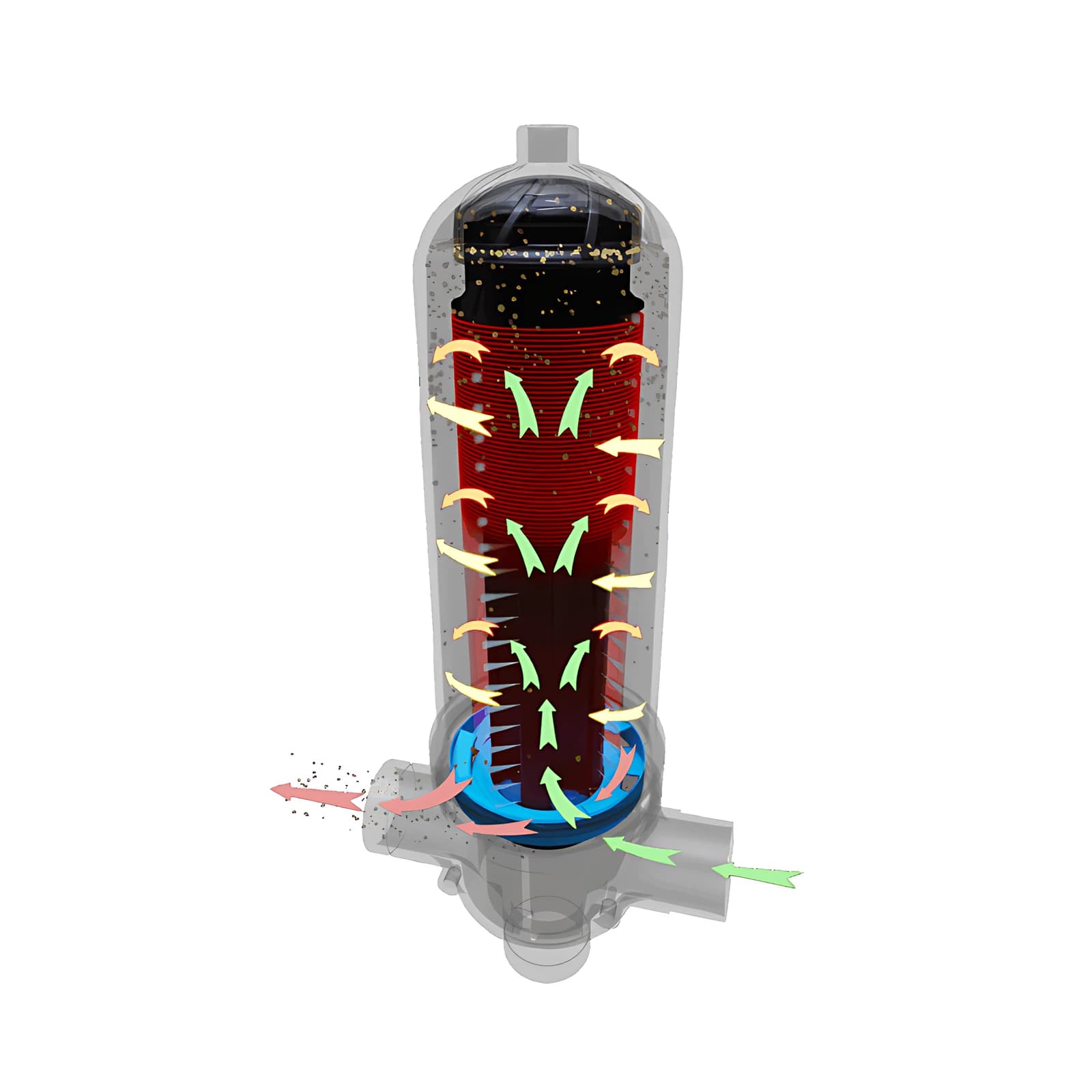

Cutaway of an AZUD HELIX disc filter during backwash
AZUD HELIX disc filter with the disc cartridge out

HELIX AUTOMATIC: sequential backwash

  1. Filtration: water flows through the disc stacks; particles stay on and between the discs.
  2. Trigger: when the differential pressure reaches the set point (typically 0.5 bar) or after a set time, the controller switches the 3-way valve of the first filter.
  3. Backwash: the discs are released and filtered water from the other filters flushes them in reverse into the drain.
  4. Next filter: the filters are backwashed one after another, so the station supplies filtered water all the time.

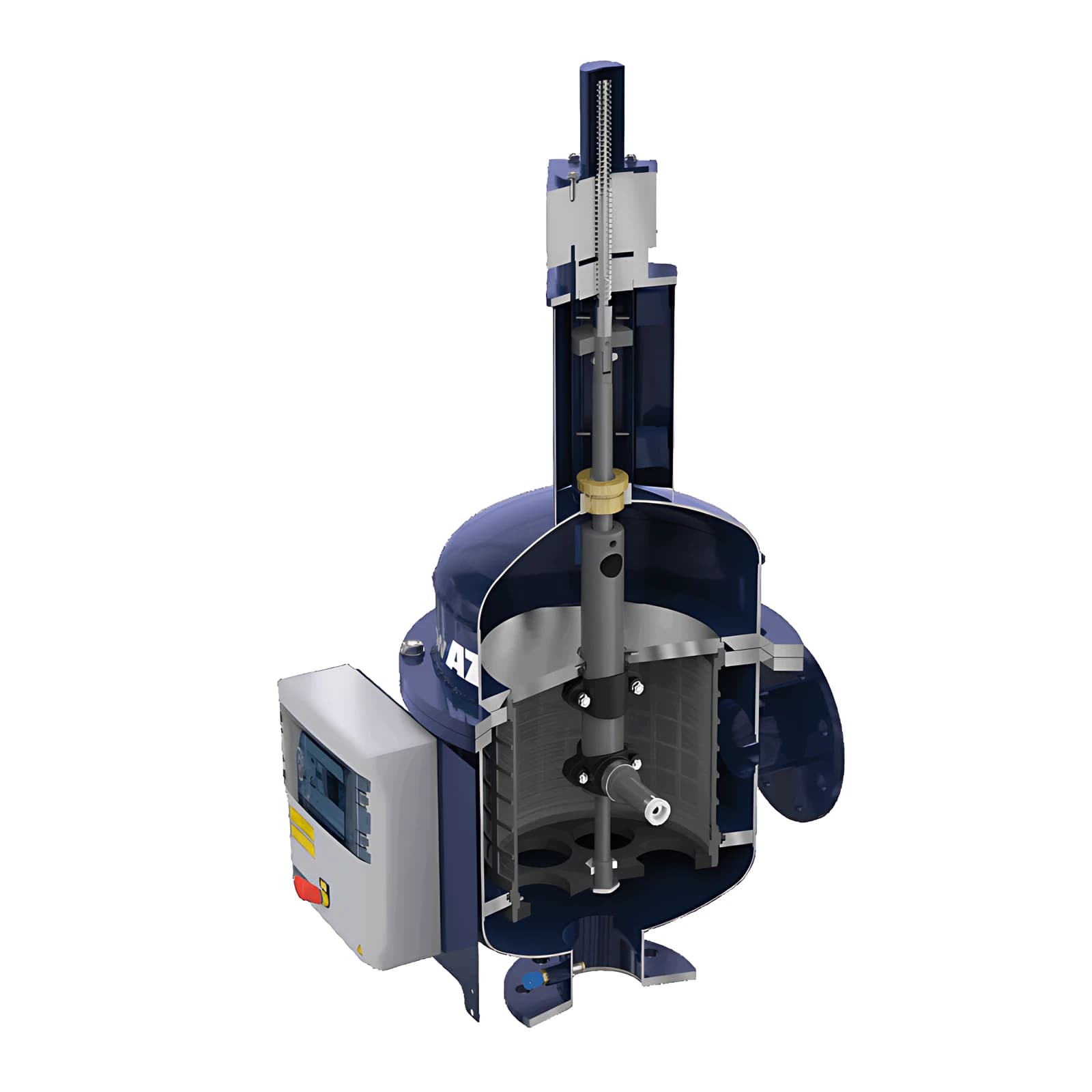

Cutaway of an AZUD LUXON LDB vertical filter

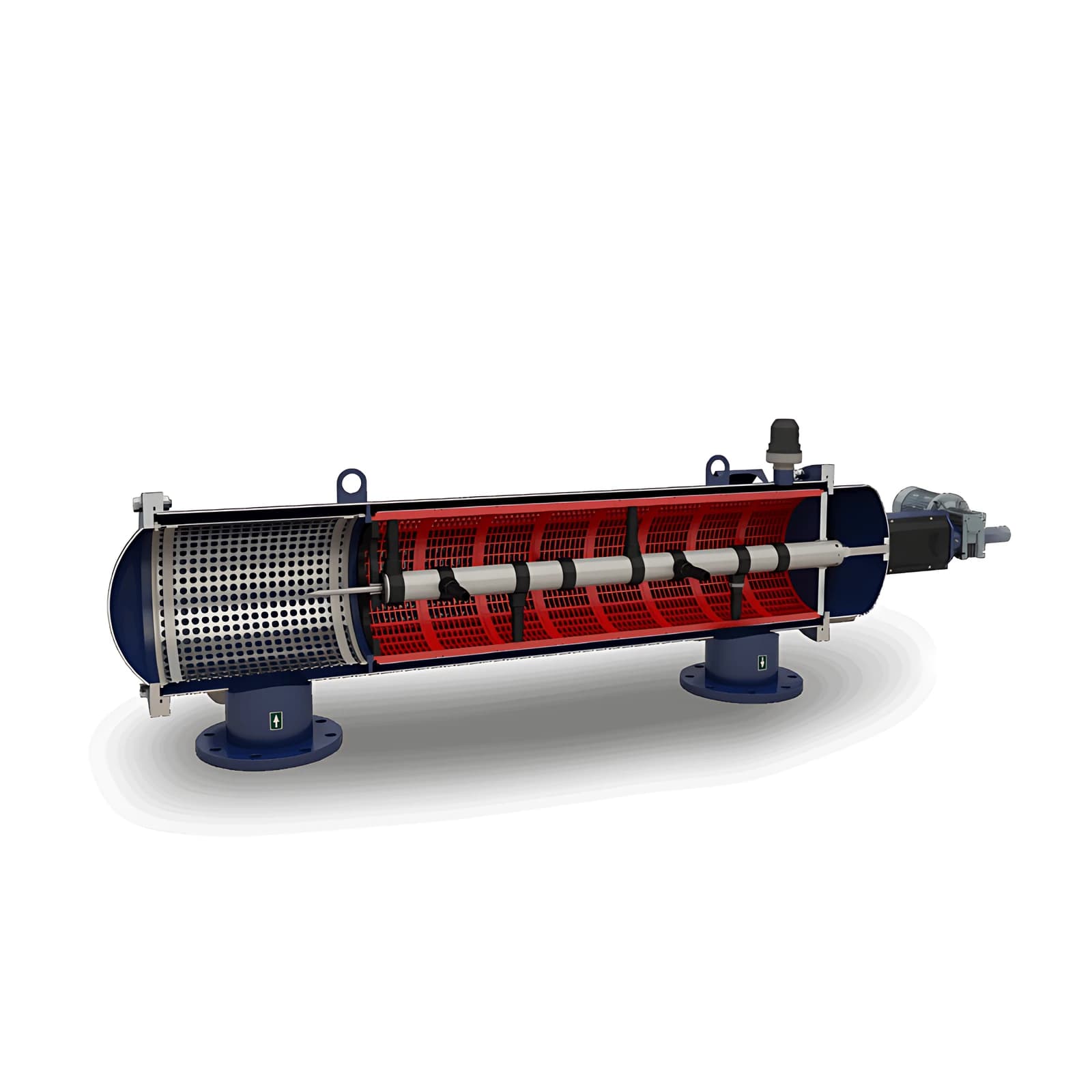

Cutaway of an AZUD LUXON MFE horizontal filter

LUXON: helical suction nozzles

  1. Filtration: water enters the inside of the screen (on the MFE first through a 6 mm pre-filter) and flows outwards through it.
  2. Trigger: when the differential pressure reaches the set point, the drain valve opens and suction builds up in the nozzles.
  3. Cleaning: the nozzles move along the screen in a helical path and suck the retained particles into the drain.
  4. End of cycle: after the set time the control unit closes the valve. Filtration continues throughout.

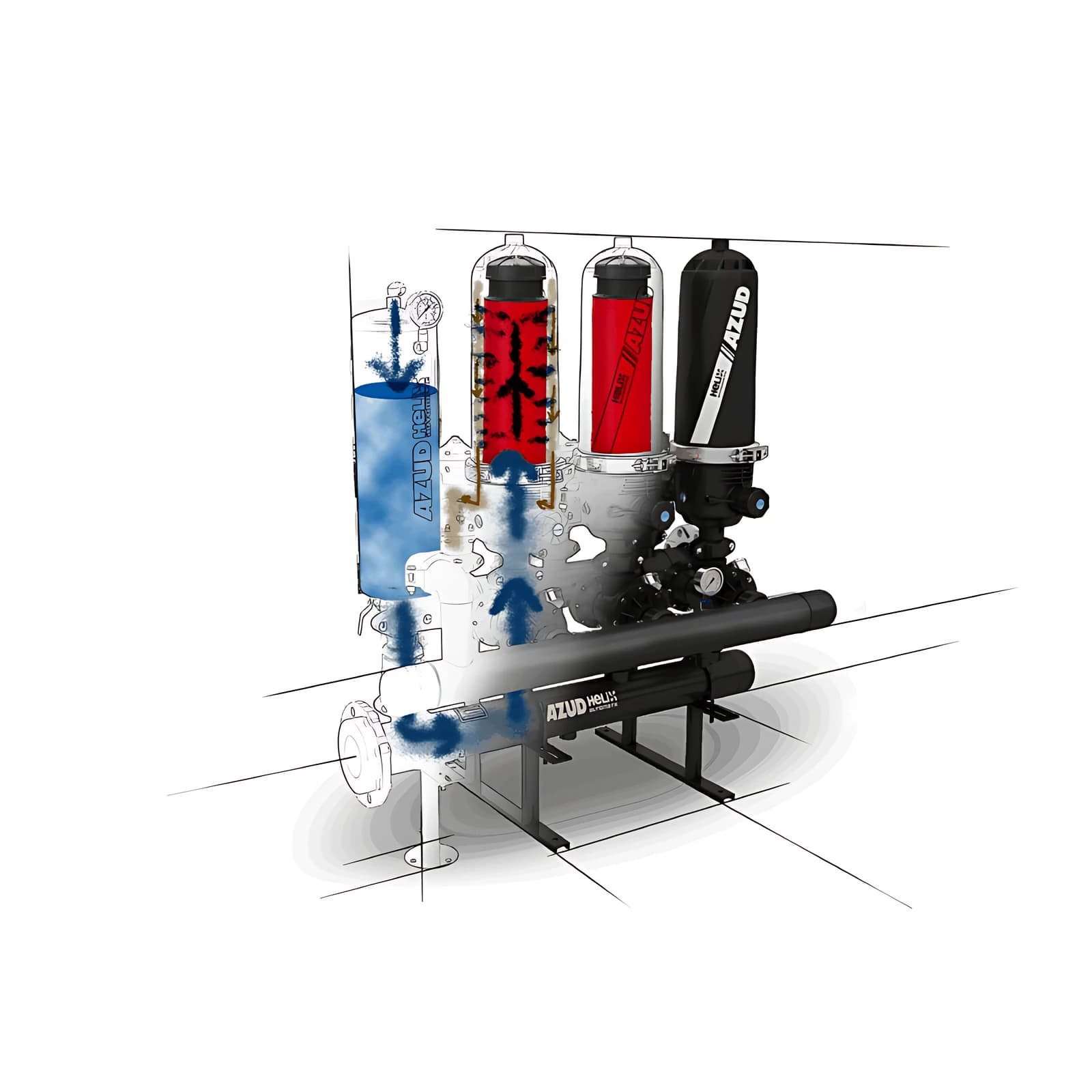

Diagram of an AZUD HELIX AUTOMATIC FT AA filtration station

FT200 AA: compressed-air-assisted backwash

With water carrying a lot of organic and sticky particles, compressed air at 4.5 to 6 bar helps clean the discs. Cleaning is more thorough and uses less water – from 10 l per filter. We can also supply the compressed air for the filtration station with a compressor from our range.

Compressors

Applications

Where we filter water

AZUD self-cleaning filters protect equipment from particles and cut maintenance costs wherever water circulates or is reused.

Groundwater filtration

LUXON LDB removes sand and silt from wells and boreholes – up to 1,065 m³/h with one unit.

Suitable: LUXON LDB

Why KOMP-R

From water analysis to commissioning

We select the filter for your water and the equipment it protects – not just for the flow rate.

01

Selection

From the flow, pressure, water source and type of particles we define the technology, size and filtration degree.

02

Quote and delivery

We prepare a quote with the technical sheet and deliver the complete station with controller.

03

Installation and start-up

We help with installation and set the differential pressure and flushing cycles.

04

Service and parts

For the equipment we supply, we provide service and genuine spare parts – discs, screens, nozzles and valves.

FAQ

Frequently asked questions

When should I choose a disc filter and when a screen filter?

AZUD HELIX disc filters are better for organic particles, algae and biofilm and for very fine filtration (down to 5 µm with the FT200 AA). AZUD LUXON screen filters suit inorganic particles such as sand and silt, and high flow rates in a small footprint – up to 1,065 m³/h from one unit.

Is the water supply interrupted during cleaning?

No. In HELIX AUTOMATIC stations the filters are backwashed one at a time while the others keep filtering. In LUXON filters the suction nozzles clean the screen while water continues to flow through the filter.

How much water does flushing use?

LUXON LCA uses 42 to 112 l per flush, MFE 112 to 280 l and LDB 16 to 180 l, depending on size. The AZUD HELIX device reduces how often disc filters need backwashing, and the air-assisted FT200 AA needs from 10 l per filter.

What pressure do the filters need?

HELIX AUTOMATIC operates from 0.8 to 10 bar and needs at least 1.5 bar to backwash. LUXON MFE and LDB need at least 2 bar at the outlet for cleaning, LCA 2.5 bar. LDB is also available as PN16. The FT200 AA also needs compressed air at 4.5 to 6 bar for backwashing.

Is a controller included?

LUXON filters come with a control unit (LCA battery or 220 V, MFE and LDB 220 V, 380 V available). HELIX AUTOMATIC stations do not include the AZUD FBC controller; we supply it separately – for 1 to 12 stations, powered by 220 V AC, 110 V AC or 12 V DC.

Can saline water be filtered?

Yes. The FT200 AA SW version is designed for water with 6,000 to 55,000 mg/l of dissolved solids (TDS); the standard version handles up to 6,000 mg/l. For LUXON LDB there are solutions for saline water and pressures above 10 bar.

What do you need for a quote?

Flow rate (m³/h), operating pressure, water source (well, river, cooling tower, process water), the desired filtration degree or the equipment to be protected and, if possible, a water analysis (particles, TDS, organic matter). From this we select the unit and prepare a quote.

AZUD water filtration

Describe your water and we will suggest the right filter.

Fill in the short form. Based on the flow rate, pressure and water quality we will suggest an AZUD unit and prepare a quote.

Choice of technology and filtration degree
Technical sheet and quote for the complete station
Delivery, start-up and service
Contact form
* required fields
Your message is sent directly to our email inbox.
Call EmailView equipment
Where to find us
Directions
Pod lipami 4 · 1370 Logatec, Slovenija
