Stationary
4/8/12-input data logger
DS 500
Intelligent data logger for all sensors: display, alarms, recording and energy analysis.
- Sensor inputs
- 4 / 8 / 12
- Display
- 7″ touch
- Memory
- 16 GB
- Outputs
- Ethernet, Modbus RTU/TCP, 4 relays
- Home
- Measuring equipment
- Data loggers and software
Data loggers
Data loggers and energy monitoring
A data logger brings all sensors into one picture: flow, pressure, dew point, electrical power and temperature. DS 500 and DS 400 measure, display, alarm and record, and CS software creates the reports.
- sensor inputs
- up to 12
- memory in the DS 500
- 16 GB
- energy analysis
- ISO 50001
Why a data logger
Cost per m³, kWh/m³ and leaks – on one screen
Electricity accounts for 70–80 % of the cost of a compressed air system – even in smaller systems quickly €10,000 to €20,000 a year. The data logger shows where that money goes: cost per m³ produced, compressor specific power in kWh/m³ and the consumption of each line.
The mobile DS 500 in a case is the tool for energy audits: one week of measurement gives you an analysis of load, idling and leaks. The stationary DS 500 collects this data continuously and sends an alarm when a value exceeds its limit.
- Sensors are detected automaticallyThe data logger recognises and powers CS sensors – no external power supplies.
- Energy analysisCost in € per m³, kWh/m³, line consumption with totalising, min/max and averages.
- Third-party sensorsInputs for Pt 100/1000, 0/4…20 mA, 0…10 V, pulse and Modbus from other manufacturers.
- Remote accessWeb server, Ethernet and Modbus RTU/TCP, plus e-mail alarms.
CS Instruments models
CS Instruments data loggers and software
Stationary data loggers for continuous monitoring, mobile kits for audits and software for evaluation.
Stationary
2/4-input data logger

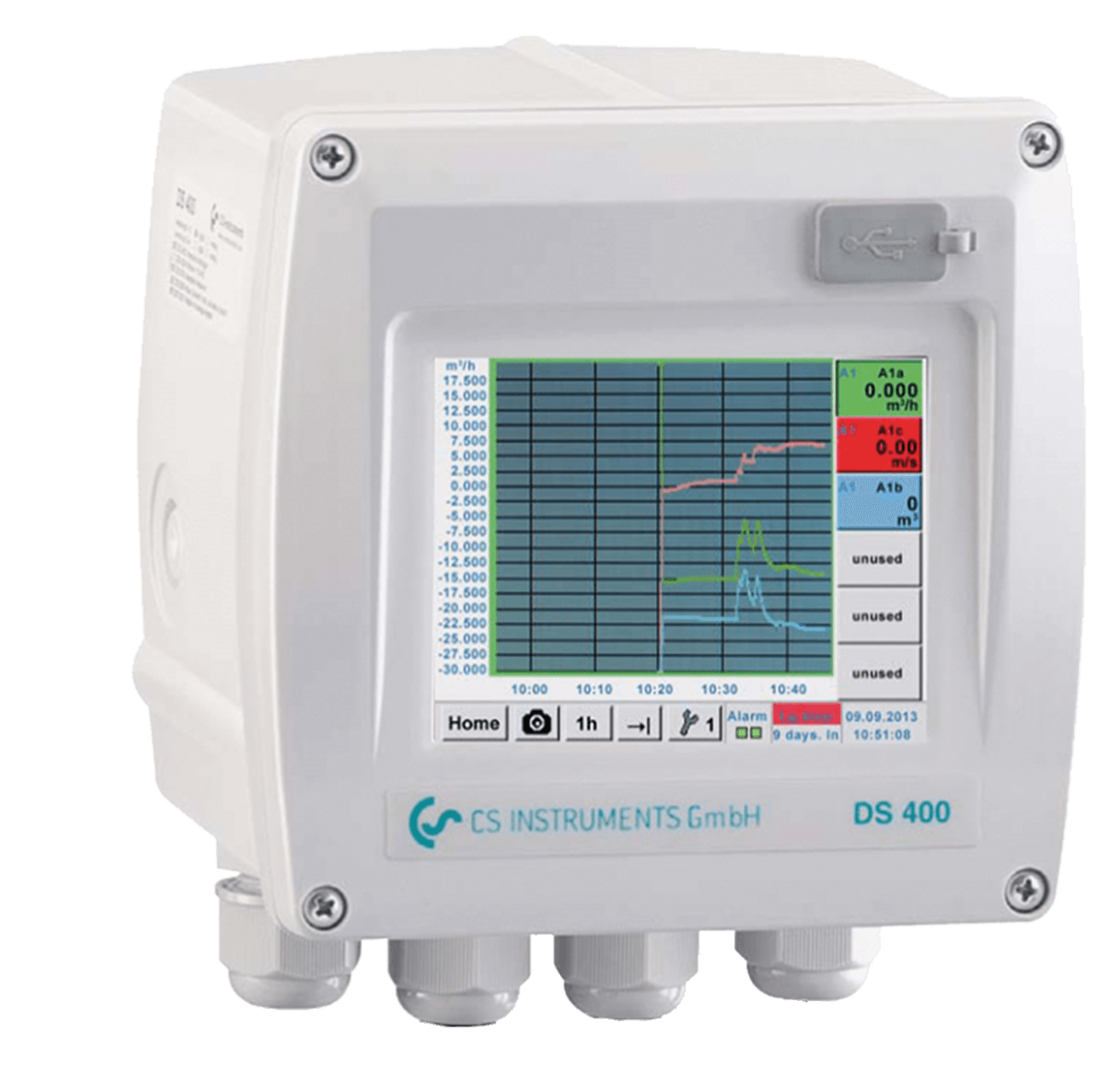

DS 400
Stationary touch-screen data logger for dew point, flow and pressure – with alarms and memory.
- Sensor inputs
- 2 / 4
- Display
- 3.5″ touch
- Memory
- 100 million values
- Alarm relays
- 2
Stationary
Dryer set
DS 52
DS 52 display with FA 510 sensor and two alarm relays for dryer monitoring.
- Sensor inputs
- 1 × 4…20 mA
- Display
- LED, 5-digit
- Alarm relays
- 2
- Outputs
- 4…20 mA
Portable
Mobile data logger
DS 500 mobile
Data logger in a case for ISO 50001 energy audits with up to 12 sensors.
- Sensor inputs
- 4 / 8 / 12
- Display
- 7″ touch
- Memory
- 16 GB
- Weight
- 4.5 kg
Portable
Compressor efficiency

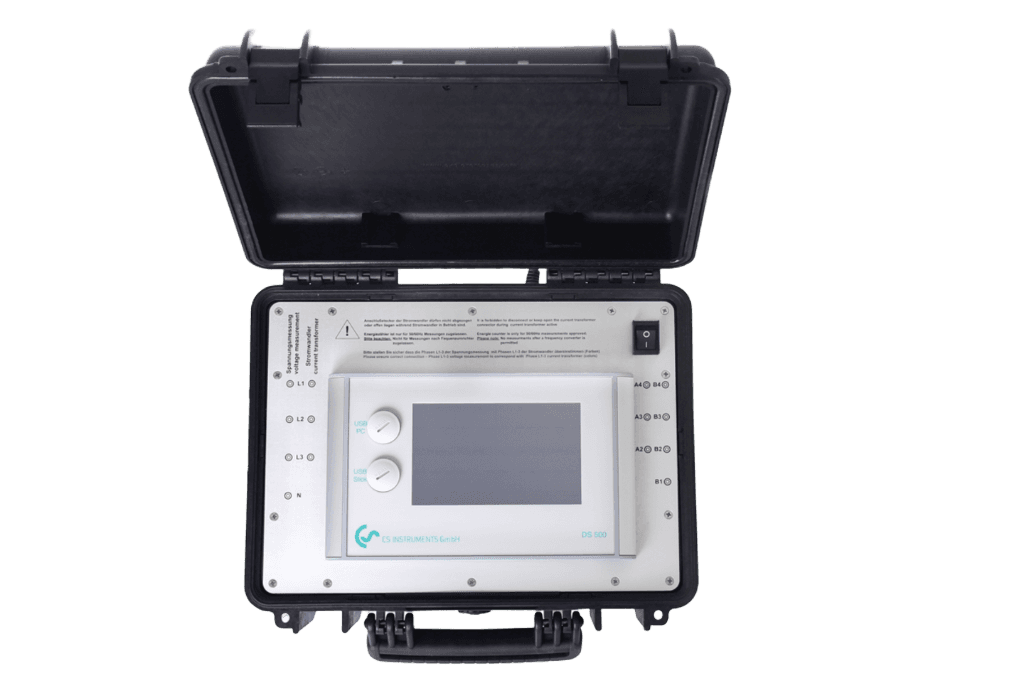

DS 500 PM mobile
Mobile kit for measuring compressor efficiency and specific power.
- Sensor inputs
- 3 / 7 / 11
- Display
- 7″ touch
- Memory
- 16 GB
- Weight
- 4.5 kg
Portable
Mobile data logger

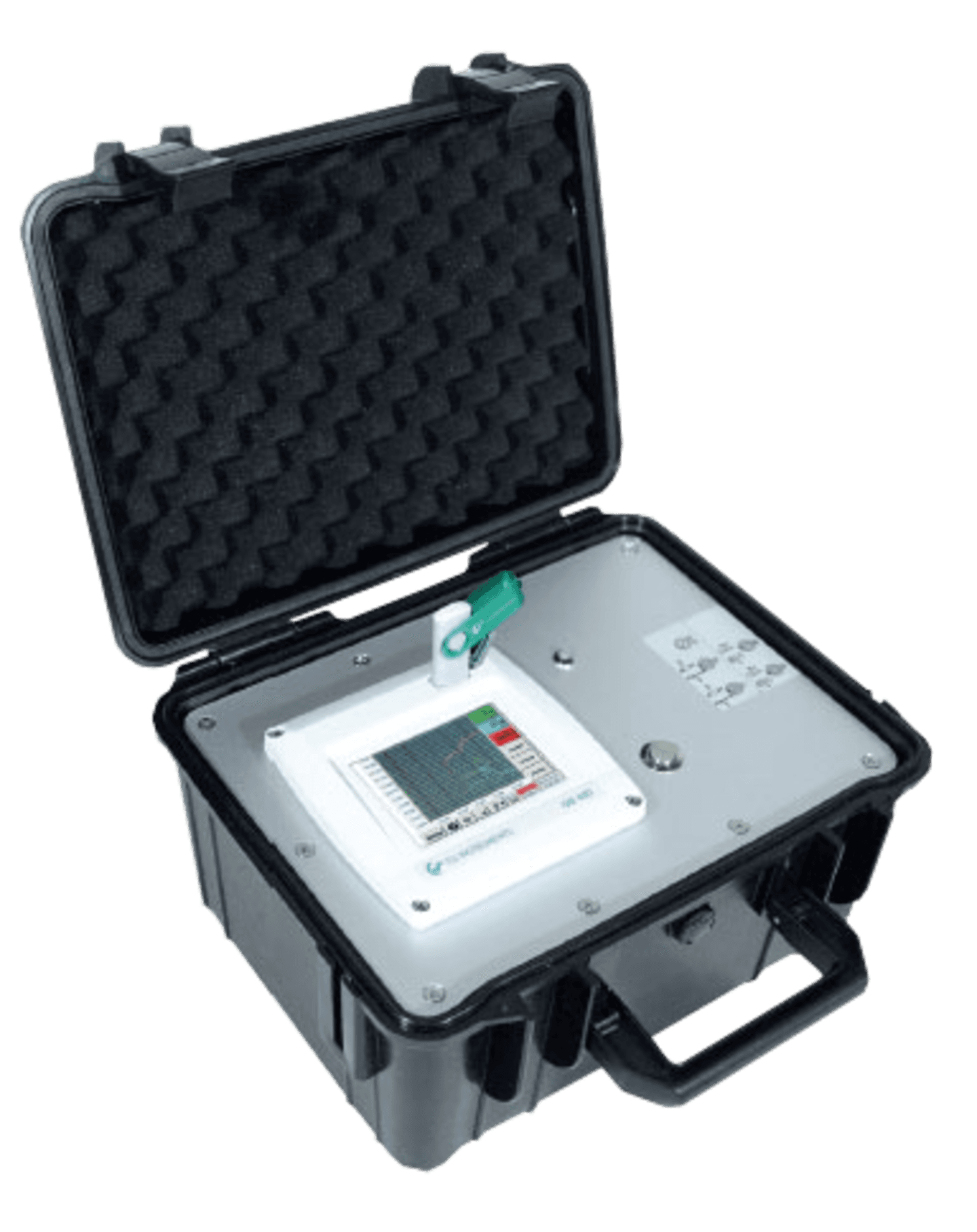

DS 400 mobile
Affordable battery-powered mobile data logger for 2 to 4 sensors.
- Sensor inputs
- 2 × 2
- Battery life
- 8 h
- Memory
- 100 million values
- Weight
- 2.2 kg
Portable
Handheld meter
PI 500
Handheld instrument for pressure, temperature, current and flow with integrated data logger.
- Sensor inputs
- 1
- Display
- 3.5″ touch
- Memory
- 16 GB
- Weight
- 450 g
Software
Software
CS Basic
Evaluation as graph or table, daily, weekly and monthly analyses and PDF export.
- Licences
- 2
- Reports / export
- PDF, CSV, e-mail
Software – we help you choose the right licence.
Software
Energy monitoring
CS Network
Server solution that collects all sensors automatically and sends reports and alarms.
- Licences
- 20 / 50 / 100 / 200
- Reports / export
- PDF, e-mail
Software – we help you choose the right licence.
Comparison
Data logger comparison
| Model | Version | Sensor inputs | Display | Memory |
|---|---|---|---|---|
| DS 500 | Stationary | 4 / 8 / 12 | 7″ touch | 16 GB |
| DS 400 | Stationary | 2 / 4 | 3.5″ touch | 100 million values |
| DS 52 | Stationary | 1 × 4…20 mA | LED, 5-digit | – |
| DS 500 mobile | Portable | 4 / 8 / 12 | 7″ touch | 16 GB |
| DS 500 PM mobile | Portable | 3 / 7 / 11 | 7″ touch | 16 GB |
| DS 400 mobile | Portable | 2 × 2 | – | 100 million values |
| PI 500 | Portable | 1 | 3.5″ touch | 16 GB |
| CS Basic | Software | – | – | – |
| CS Network | Software | – | – | – |
Energy audit
How an energy analysis with the DS 500 mobile works
The procedure from the CS Instruments catalogue – a clear picture of compressed air costs within a few days.
1
Measurement
Current clamps on the compressors, a VA 500 flow meter on the main line, pressure and dew point if needed – usually 7 days.
2
Analysis
Energy consumption, load, idling, stops, number of switching cycles, specific power and leaks during non-production time.
3
Evaluation
Daily and weekly overview in CS Basic, cost of electricity, air and leaks in €.
4
Actions
Fixing leaks, optimising compressor control, lower intake temperature and smaller pressure drops.
How to choose
How to choose a data logger
Number of sensors
Up to 4 sensors: DS 400. Up to 12 sensors and math channels: DS 500.
Stationary or mobile
Continuous monitoring with the stationary version, energy audits with the mobile version in a case.
Compressors
For compressor efficiency, the DS 500 PM mobile with power measurement.
Software
CS Basic for evaluation, CS Network for continuous company-wide monitoring.
FAQ
Data logger questions
Which sensors can be connected to the DS 500?
All CS Instruments sensors (flow, dew point, pressure, temperature, power, oil, particles) and third-party sensors with 0/4…20 mA, 0…10 V, Pt 100/1000, pulse or Modbus outputs.
What is compressor specific power?
Specific power in kWh/m³ tells you how much electricity the compressor uses per cubic metre of air. It is calculated from electrical power and flow measurements, e.g. with the DS 500 PM mobile.
How do I get the data from the data logger?
Via USB stick, Ethernet, web server or Modbus RTU/TCP. With CS Basic you evaluate it on a PC; CS Network collects it automatically.
Can the data logger send alarms?
Yes. Relays switch when a limit is exceeded, and CS Network sends e-mails and automatic weekly, monthly or annual reports.
Related measurements
What else we measure in a compressed air system
Measuring devices
Tell us what you measure and we will propose the right instrument.
Fill in a short form and we will prepare a proposal for measurement equipment and implementation based on the medium, measuring range, and measurement objective.
Proposal of the right instrument type and measuring range
Measurement reports, trends, and interpretation of results
Supply, installation, calibration, and service
