Reliable Filter Condition Monitoring
The differential pressure sensor directly measures the pressure drop across filter elements, providing clear information about the actual condition of filters in compressed air systems.
Differential Pressure Sensor for Filter Monitoring
Reliable measurement of pressure drop across filter elements – enabling timely filter replacement, reduced energy consumption, and lower operating costs.
| Measuring Range: 0 … 1.6 bar (differential pressure) |
| Output: 4–20 mA (two-wire) |
| Power Supply: 10 … 30 V (for 4–20 mA output) |
| Max. System Pressure: 10 bar |
| Operating Temperature: −20 … +80 °C |
| Connections: 2× G 1/8" female thread, push-in fitting for 6 mm tube |
| Electrical Connection: M12 × 1 circular connector |
| Accuracy: 2.0 % FS |
| Measuring Range: 0 … 1.6 bar (differential pressure) |
| Output: 4–20 mA (two-wire) |
| Power Supply: 10 … 30 V (for 4–20 mA output) |
| Max. System Pressure: 10 bar |
| Operating Temperature: −20 … +80 °C |
| Connections: 2× G 1/8" female thread, push-in fitting for 6 mm tube |
| Electrical Connection: M12 × 1 circular connector |
| Accuracy: 2.0 % FS |
- Differential Pressure Sensor 1.6 bar (DP Sensor)Industrial differential pressure sensor for measuring pressure drop in compressed air and gas systems. Measuring range 0 … 1.6 bar, 4–20 mA two-wire output, and a robust design for industrial applications.
| Parameter | DP Sensor (1.6 bar diff.) |
|---|---|
| Measuring Range [bar] | 0 … 1.6 (differential pressure) |
| Max. System Pressure [bar] | 10 |
| Overload (both sides) [bar] | 15 |
| Overload (one-sided) + side [bar] | 15 |
| Overload (one-sided) − side [bar] | 10 |
| Burst Pressure [bar] | 60 |
| Total Error [% FS] | 2.0 |
| Output | 4–20 mA, two-wire |
| Power Supply [VDC] | 10 … 30 (for 4–20 mA output) |
| Ambient Operating Temperature [°C] | -20 … +80 |
| Process Connections | 2× G 1/8" female thread, including push-in fitting for 6 mm tubing |
| Electrical Connection | M12 × 1 circular connector |
Why Choose the Differential Pressure Sensor?
Timely Filter Replacement
Differential pressure monitoring allows filters to be replaced at the right time – neither too early nor too late. A filter element replacement is recommended when the differential pressure exceeds 350 mbar (except for activated carbon filters).
Reduced Energy Costs
Increasing differential pressure results in higher energy consumption and increased operating costs. Continuous monitoring helps prevent unnecessary losses and optimize system performance.
High Measurement Accuracy
The sensor achieves a total error of only 2% of full scale and provides reliable differential pressure measurements up to 1.6 bar.
Industrial 4–20 mA Output
The standard two-wire 4–20 mA output enables easy integration into monitoring systems, data loggers, and existing industrial automation solutions.
Suitable for Harsh Environments
Designed for industrial use, the sensor operates in temperatures ranging from −20 to +80 °C and withstands system pressures up to 10 bar.
Easy Installation and Operation
G 1/8" connections with push-in fittings for 6 mm tubing and an M12 × 1 electrical connector ensure quick and reliable installation in existing systems.
Maintenance Cost Optimization
The chart provided in the brochure clearly illustrates the relationship between differential pressure, energy costs, and filter costs, making the sensor an essential tool for economical maintenance optimization.
Compressed Air Systems
Primary ApplicationContinuous monitoring of pressure drop across filters in compressed air systems enables timely replacement of filter elements, lower energy losses, and improved operational reliability.

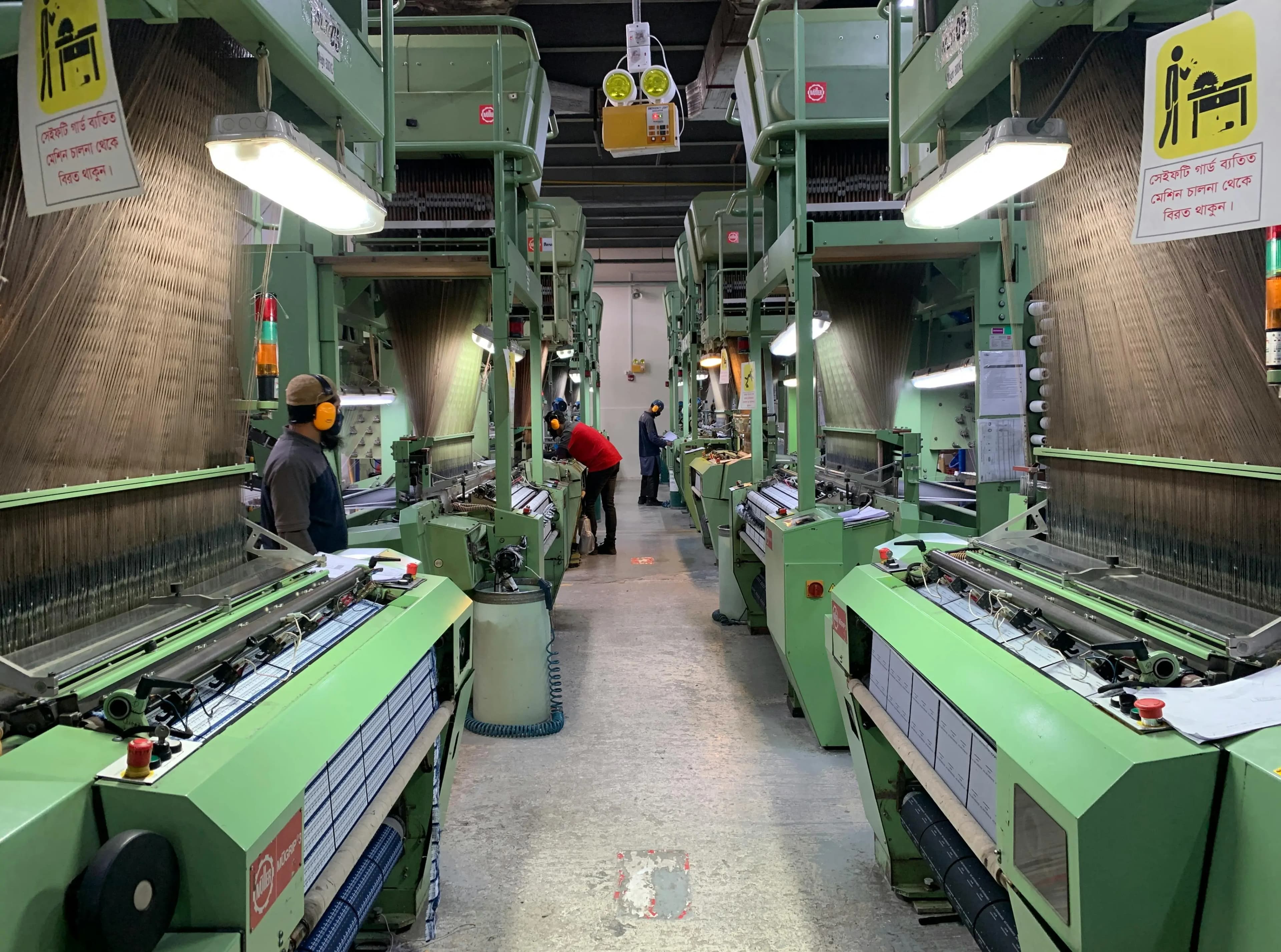

Manufacturing Industry
IndustryStable compressed air quality is essential in manufacturing facilities. Monitoring differential pressure across filters helps prevent pressure drops, downtime, and increased energy costs.
Food and Pharmaceutical Industry
High StandardsIn applications with stringent air quality requirements, filter monitoring is essential. The differential pressure sensor provides traceability and reliable operation of filtration systems.
Energy Efficiency
Cost OptimizationIncreased differential pressure directly translates into higher energy consumption. Monitoring enables optimized operation and significant reductions in total cost of ownership (TCO).
