Completely oil-free
No oil in the pump – clean air for dentistry, laboratories and food.
Balma cleanAIR – oil-free dental compressors
Completely oil-free compressors for dentistry, laboratories and medicine: direct motor coupling, an epoxy-coated receiver and versions with dryer and acoustic hood.
| Motor power: 1.1–2 kW (1.5–2.5 HP) |
| Max. pressure: 8 bar |
| FAD at 5 bar: 125–240 l/min |
| Air receiver: 25 / 30 / 50 l |
| Workstations: 1–5 chairs |
| Motor power: 1.1–2 kW (1.5–2.5 HP) |
| Max. pressure: 8 bar |
| FAD at 5 bar: 125–240 l/min |
| Air receiver: 25 / 30 / 50 l |
| Workstations: 1–5 chairs |
- Direct motor couplingMotor and pump are coupled directly, with minimal losses.
- Motor thermal protectionSwitches the motor off on overheating and resets automatically once it cools.
- Large fanFor effective cooling of the pump and motor.
- Epoxy-coated receiverAn internal epoxy coating protects the receiver against corrosion.
- Pressure switchStarts and stops the compressor automatically based on receiver pressure.
- Pressure regulator with gaugeSet the working pressure to suit the tool.
| Parameter | CLR 15/25 | CLR 15/50 | CLR 20/25 | CLR 20/50 | CLR 25/50 |
|---|---|---|---|---|---|
| Part number | 4116092255 | 4116092259 | 4116092257 | 4116092261 | 4116092289 |
| Air receiver [l] | 25 | 50 | 25 | 50 | 50 |
| Version | stationary | ||||
| Workstations (chairs) | 1–2 | 1–2 | 2–3 | 2–3 | 4–5 |
| Free air delivery (FAD) at 5 bar [l/min] | 125 | 125 | 155 | 155 | 240 |
| Intake volume [l/min] | 240 | 240 | 350 | 350 | 480 |
| Power [HP / kW] | 1.5 / 1.1 | 1.5 / 1.1 | 2 / 1.5 | 2 / 1.5 | 2.5 / 2 |
| Speed [min⁻¹] | 1400 | ||||
| Power supply | 230 V 1~ 50 Hz | ||||
| Max. pressure [bar] | 8 | 8 | 8 | 8 | 8 |
| Compression | single-stage | ||||
| Lubrication | oil-free | ||||
| Drive | direct | ||||
| Dryer | — | — | — | — | — |
| Sound power [dB(A)] | 70.8 | 70.8 | 73.6 | 73.6 | 77 |
| Dimensions (L × W × H) [mm] | 470 × 430 × 665 | 450 × 470 × 850 | 470 × 470 × 700 | 450 × 470 × 850 | 640 × 470 × 890 |
| Weight [kg] | 31 | 36 | 49 | 40 | 52 |
Benefits
Sized by workstations
Models are grouped by the number of dental chairs, from 1–2 to 4–5 workstations.
Dryer down to −40 °C
T versions have an adsorption dryer with a pressure dew point down to −40 °C.
Up to 10 dB quieter
S and ST versions have an acoustic hood with effective cooling.

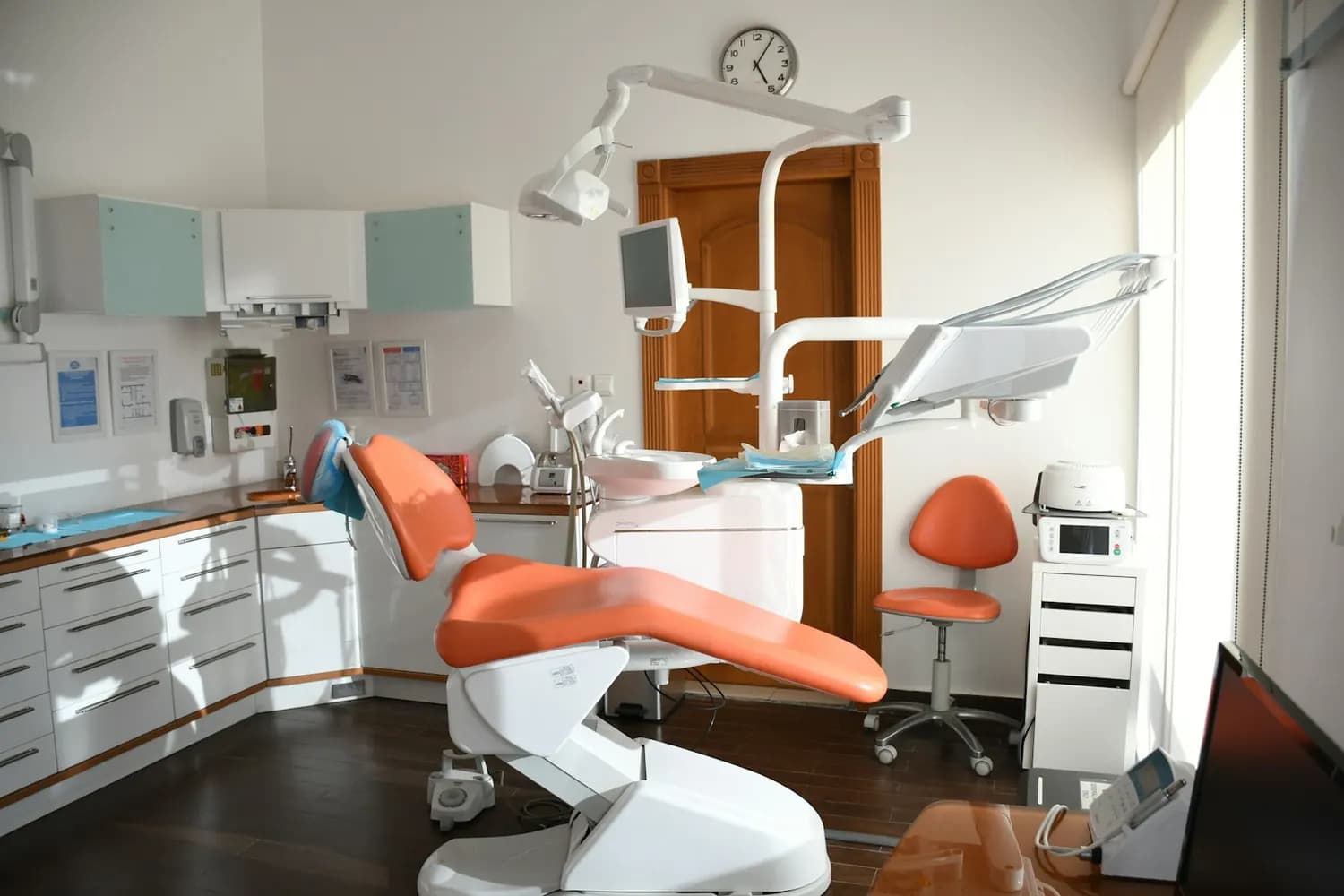

Dental practices
Oil-free airClean, dry and quiet air for dental chairs and dental laboratories. Choose the oil-free compressor by the number of workstations.
Laboratories
Analysis and testingQuiet, oil-free air for analysers, test rigs, pneumatic valves and autoclaves. A small compressor can stand right in the room where you work.
Medical and healthcare
Clean, dry airOil-free air for medical devices, sterilisation and hospital equipment. A dryer and filters keep the air dry and clean.
Food and beverage
No oil contaminationAir for packaging machines, beverage filling and pneumatic valves where oil must never touch the product. Oil-free compressors remove that risk.
Compressors
Tell us your requirements and we will propose the right compressor.
Fill in a short form and we will prepare a configuration proposal.
Sizing based on actual consumption
Energy optimization
Installation and service
Where to find us
DirectionsPod lipami 4 · 1370 Logatec, Slovenija
Related piston compressors
Compare related Bambi, Worthington Creyssensac and Balma series.

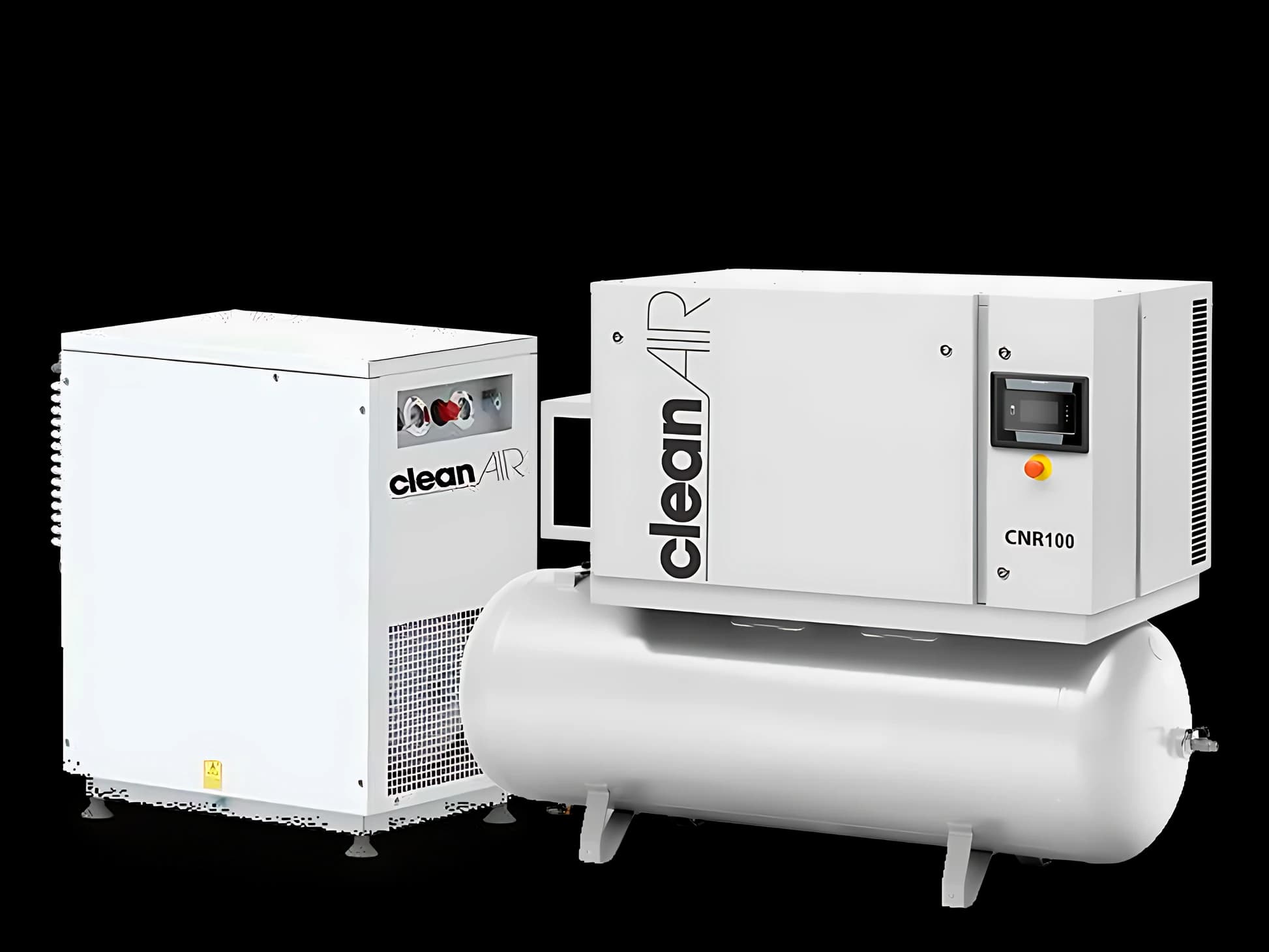

Balma cleanAIR CNR
Oil-freeLarge oil-free compressors, 5.5–20 HP, 10 bar, up to 1860 l/min FAD, enclosed.
More about the device→
Bambi VTS
Oil-freeUltra-quiet enclosed oil-free compressors, from 57 dB(A), up to 210 l/min.
More about the device→

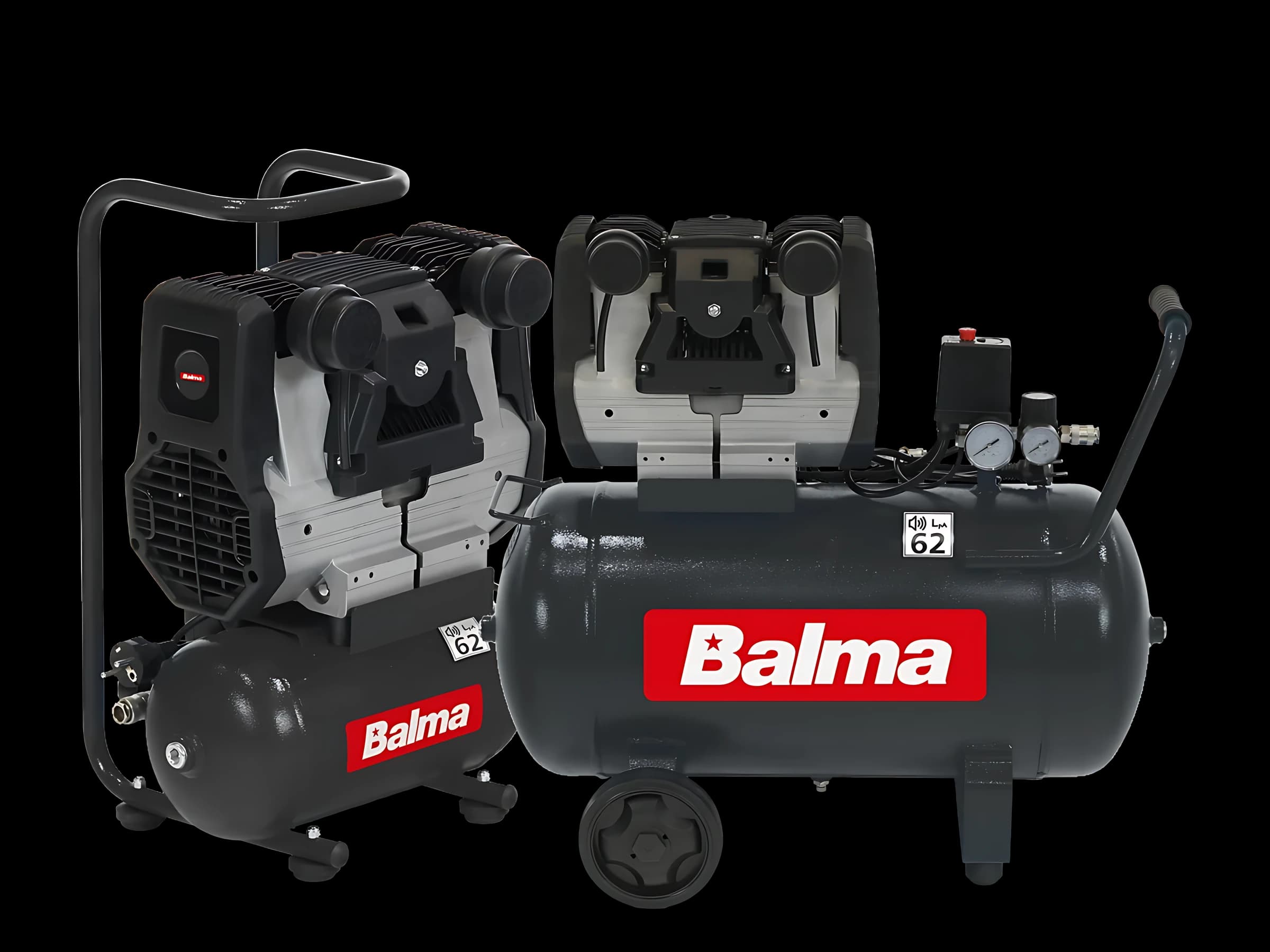

Balma SOFFIO MX20
