Oil-free air
No oil in the pump: no oil changes and no oil vapour in the air – for laboratories, controls and food.
Bambi PT – quiet oil-free piston compressors
Oil-free compressors with low noise from 67 dB(A) and minimal maintenance – no oil in the pump, with a 10 µm filter, regulator and Condor pressure switch.
| Motor power: 0.75–2.3 kW (1–3 HP) |
| Max. pressure: 8 bar |
| FAD at 5 bar: 75–225 l/min |
| Air receiver: 4–90 l |
| Noise level: 67–74 dB(A) |
| Motor power: 0.75–2.3 kW (1–3 HP) |
| Max. pressure: 8 bar |
| FAD at 5 bar: 75–225 l/min |
| Air receiver: 4–90 l |
| Noise level: 67–74 dB(A) |
- Condor pressure switchA quality pressure switch starts and stops the compressor automatically based on receiver pressure.
- 10 µm filter and pressure regulatorOutlet filter (10 µm) and adjustable regulator for clean air at the point of use.
- Braided stainless pipeBraided stainless pipe connects the pump to the receiver.
- Internally protected receiverAn internal coating protects the receiver against corrosion; Bambi gives a 5-year warranty on the receiver.
- Safety valveProtects the receiver and system against overpressure.
| Parameter | PT5 | PT15 | PT24 | PTH24 | PT50 | PT90 |
|---|---|---|---|---|---|---|
| Air receiver [l] | 4 | 15 | 24 | 24 | 50 | 90 |
| Free air delivery (FAD) at 5 bar [l/min] | 75 | 75 | 75 | 75 | 150 | 225 |
| Power [HP / kW] | 1 / 0.75 | 1 / 0.75 | 1 / 0.75 | 1 / 0.75 | 2 / 1.5 | 3 / 2.3 |
| Power supply | 230 V 1~ 50 Hz | |||||
| Current [A] | 2.7 | 2.7 | 2.7 | 2.7 | 5.4 | 8.1 |
| Max. pressure [bar] | 8 | 8 | 8 | 8 | 8 | 8 |
| Compression | single-stage | |||||
| Lubrication | oil-free | |||||
| Drive | direct | |||||
| Noise level [dB(A)] | 67 | 72 | 74 | 74 | 67 | 72 |
| Dimensions (L × W × H) [mm] | 400 × 330 × 340 | 370 × 370 × 530 | 400 × 400 × 570 | 650 × 250 × 560 | 880 × 340 × 620 | 1040 × 430 × 760 |
| Weight [kg] | 17 | 23 | 25 | 27 | 44 | 85 |
Benefits
Quiet – from 67 dB(A)
Low noise allows installation close to the workstation.
Motor guard
The guard protects the user from hot parts and directs air for optimum cooling.
Six sizes
From the compact PT5 up to the PT90, which comes with wheels as standard.
Laboratories
Analysis and testingQuiet, oil-free air for analysers, test rigs, pneumatic valves and autoclaves. A small compressor can stand right in the room where you work.
Control and automation
Control airConstant pressure for pneumatic valves, cylinders, automatic doors and control systems. Quiet compressors with filter and regulator can sit next to the machine.
Dental practices
Oil-free airClean, dry and quiet air for dental chairs and dental laboratories. Choose the oil-free compressor by the number of workstations.
Food and beverage
No oil contaminationAir for packaging machines, beverage filling and pneumatic valves where oil must never touch the product. Oil-free compressors remove that risk.
Compressors
Tell us your requirements and we will propose the right compressor.
Fill in a short form and we will prepare a configuration proposal.
Sizing based on actual consumption
Energy optimization
Installation and service
Where to find us
DirectionsPod lipami 4 · 1370 Logatec, Slovenija
Related piston compressors
Compare related Bambi, Worthington Creyssensac and Balma series.
Bambi VT
Oil-freeVee Twin oil-free compressors, 0.55–3 kW, up to 316 l/min, optional dryer.
More about the device→

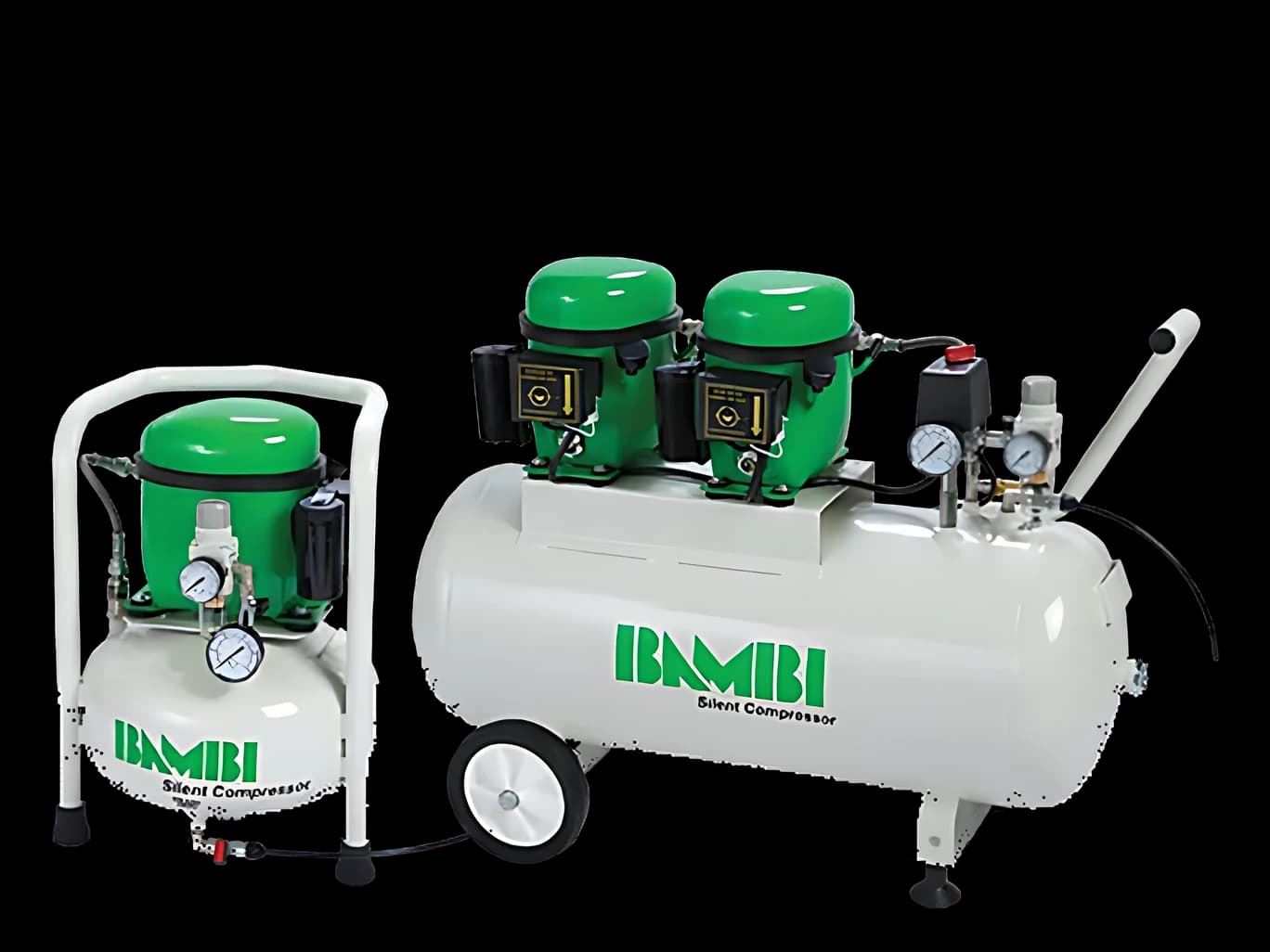

Bambi BB
