Integrated filter and dust separator
The F-CEVF (29) includes a low filter vessel and effective dust separator for reliable extraction of fine material such as paper dust and particles.

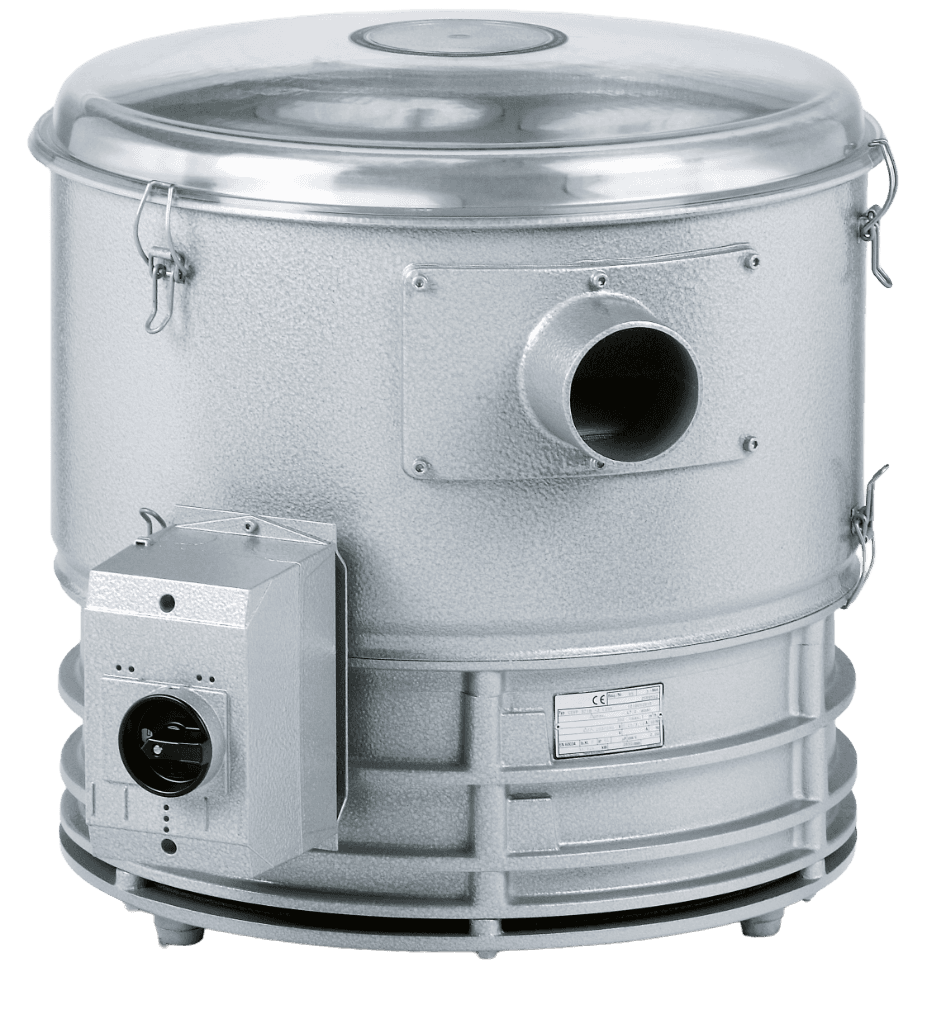

Elmo Rietschle F-CEVF (29)
Multistage radial blower for vacuum operation with a low filter vessel and dust separator for effective extraction of paper dust and fine particles in industrial processes.
| Operation: Vacuum |
| Volumetric flow: Up to 5 m³/min |
| Total differential pressure: Up to 90 mbar |
| Filtration: Low filter vessel and dust separator |
| Operation: Vacuum |
| Volumetric flow: Up to 5 m³/min |
| Total differential pressure: Up to 90 mbar |
| Filtration: Low filter vessel and dust separator |
- Low filter vessel with dust separatorThe standard F-CEVF (29) configuration includes a low filter vessel and integrated dust separator for effective removal of fine material such as paper dust and particles.
- Multistage radial blower for vacuum operationThe multistage radial design for vacuum operation provides stable volumetric flow up to 5 m³/min and total differential pressure up to 90 mbar.
- IP55 industrial electric motorThe electric motor has IP55 protection and class F insulation, complies with DIN EN 60034 and is suitable for continuous industrial use.
| Parameter | CEVF 3718-3 (29) | CEVF 3718-4 (29) |
|---|---|---|
| Maximum suction capacity [m³/min] | up to 5 | up to 5 |
| Maximum total differential pressure [mbar] | up to 90 | up to 90 |
| Motor rated power [kW] | 1,1 | 1,5 |
| Voltage [V] | 230 Δ / 400 Y | 230 Δ / 400 Y |
| Current [A] | 3,6 Δ / 2,1 Y | 5,9 Δ / 3,4 Y |
| Weight [kg] | 40 | 44 |
| Sound level [dB(A)] | 72 | 73 |
Benefits
Stable vacuum in a compact design
The multistage radial design provides volumetric flow up to 5 m³/min and total differential pressure up to 90 mbar in a very compact construction.
Robust industrial construction and long service life
Cast housing and rotors provide mechanical stability, wear resistance and reliable operation in continuous industrial processes.
Quiet, smooth operation
The radial blower design provides low noise and low vibration, making it suitable for production and packaging lines.
Minimal maintenance
Lifetime-lubricated bearings and a simple contact-free design reduce service requirements and operating costs.
Ideal for paper and packaging
A particularly suitable solution for extracting paper dust and fine particles in packaging and paper-processing applications.
Packaging industry
Primary applicationReliable extraction of paper dust and fine particles generated when trimming, cutting and forming packaging on automated lines.
Printing industry
Clean working environmentUsed in air cabinets and auxiliary vacuum systems of printing machines where fine-dust removal without process contamination is important.
General industry
Industrial flexibilitySuitable for industrial applications with light, dry particles where reliable operation and minimal maintenance are important.
