Oil-lubricated screw compressors · CompAir and Champion
From 2.2 to 250 kW, fixed or regulated speed (RS). The CompAir L-Series for maximum efficiency and the Champion FM Series for excellent value for money. Supply, installation and service: KOMP-R.
Two brands
Both brands offer oil-lubricated screw compressors with fixed or regulated speed. They differ in range, equipment and warranty.
Premium efficiency2.2–250 kW · 10 series
For continuous operation, large stations and the lowest energy use.
CompAir series →Value for money2.2–132 kW · 6 series
For workshops and small and medium-sized companies that want reliable air at a good price.
Champion series →Range
16 series from two brands, from a compact workshop unit to a two-stage FourCore compressor for central stations. Click a series for technical data, versions and equipment.
CompAir
CompAir
CompAir
CompAir
CompAir
CompAir
CompAir
CompAir
CompAir
CompAir
Champion
Champion
Champion
Champion
Champion
Champion
Selector
Set your working pressure and air demand. We show which series cover that point and the three models that fit it best.
= 3,000 l/min · 180 m³/h
Does demand vary during the day? Choose RS: regulated speed follows demand. CompAir states up to 35%, Champion at least 25% energy savings compared with fixed speed.
CompAir · L15–L22
L18 RS
regulation 1.33–3.05 m³/min
18.5 kW · load ≈ 98%
CompAir · L15–L22
L18
3.25 m³/min at this pressure
18.5 kW · load ≈ 92%
Champion · FM7–FM22
FM22
3.23 m³/min at this pressure
22 kW · load ≈ 93%
Series flow at 7.5 barm³/min
Flows to ISO 1217 from CompAir brochures and the Champion price book (April 2026). For fixed speed we use the nearest higher pressure version. For a final choice we recommend measuring your demand – we can help.

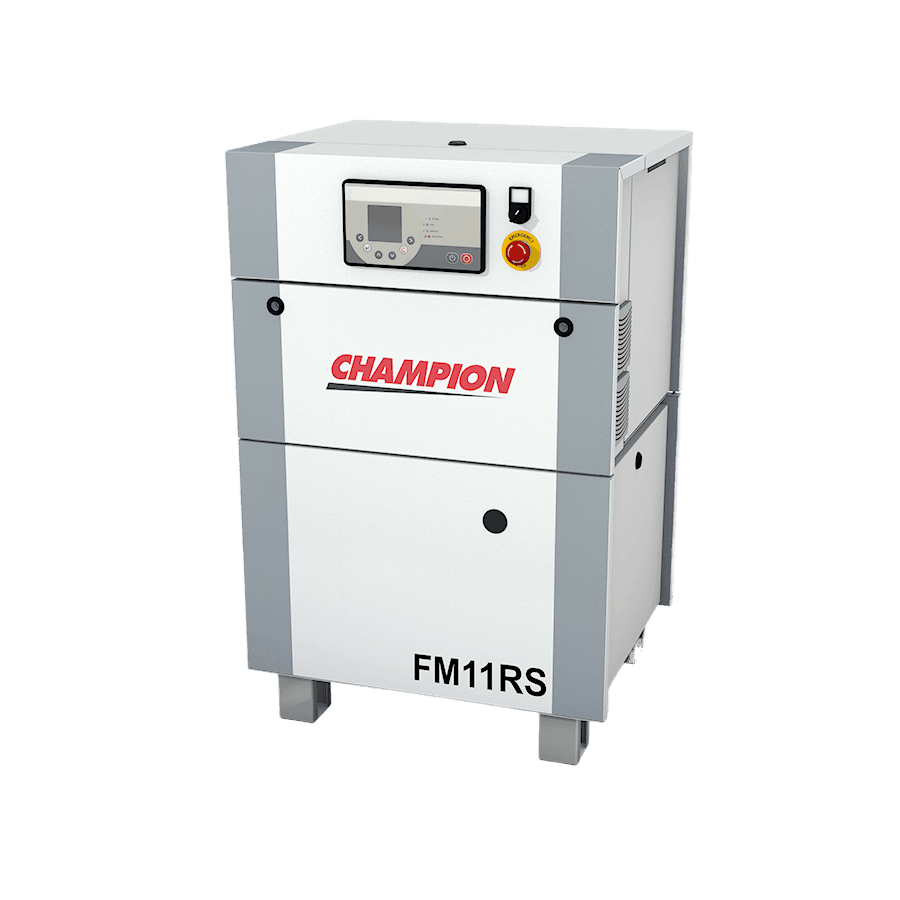

Champion FM Series
Built to Deliver ValueChampion has been building screw compressors for more than 55 years. The FM Series from 2.2 to 132 kW is made for small and medium-sized companies: easy to install, simple to maintain and designed for continuous operation.
55+years of screw compressor experience
30quality checks before each compressor is tested
5 yearsfree extended warranty
≥ 25%less energy with FM RS regulated speed
To ISO 1217 (flow) and IEC 60204 (electrical equipment). The data is stored and a test report is available for every compressor.
Performance and critical components of every compressor are recorded in a database.
Rotors ground on CNC machines with online laser measurement. FM15–FM22 use the Enduro airend with integrated separator and oil filter.
ISO 9001, ISO 14001 and ISO 45001, Lonate Pozzolo plant (Italy).
Up to 10% more flow than the FM22: 3.36–3.79 m³/min at 22 kW, fixed or regulated speed, stand-alone or on a 500-litre receiver.

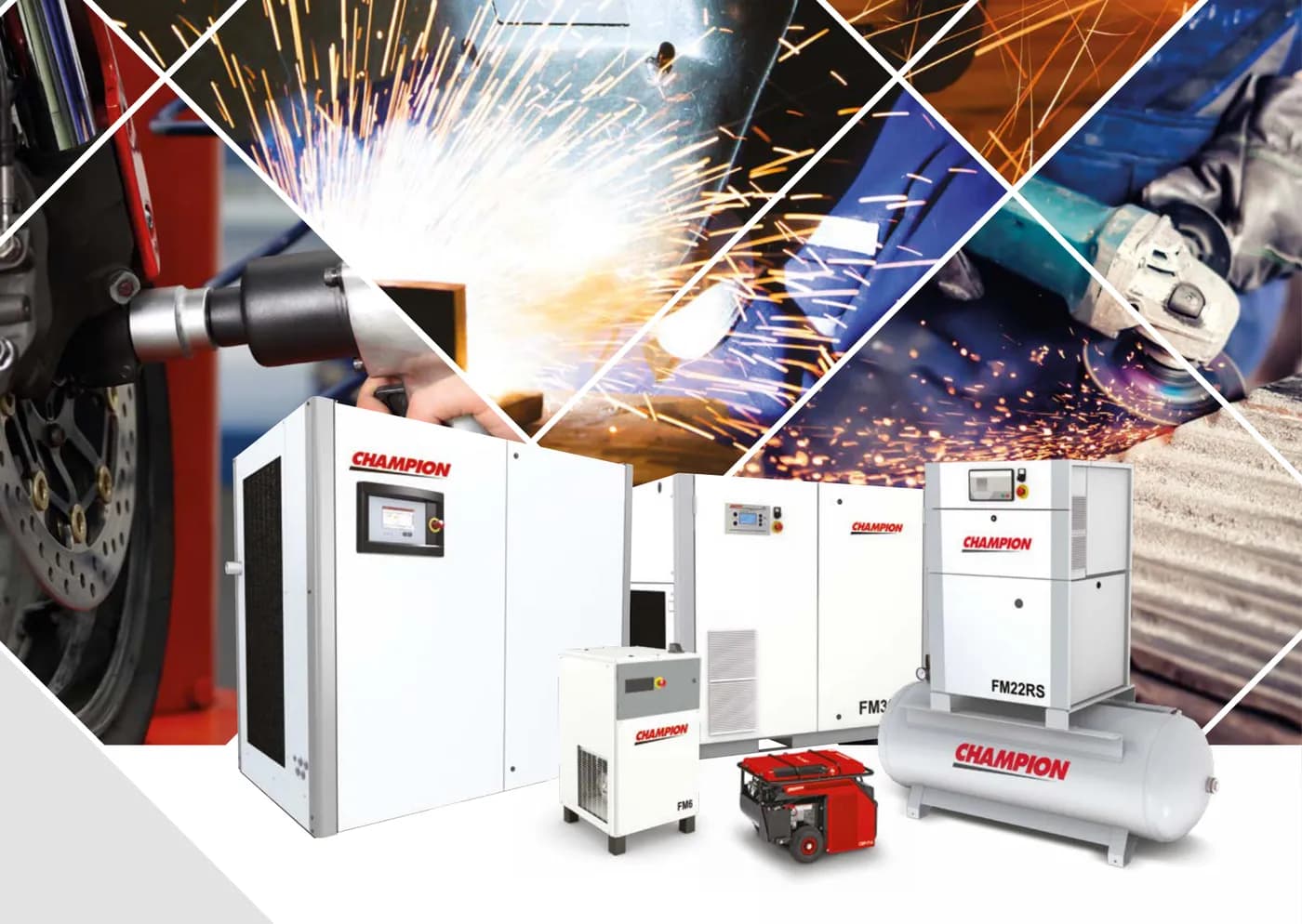

A 7.5 or 11 kW compressor on a 270-litre receiver with CHR refrigeration dryer, CHF filters, condensate drain and oil/water separator. 10 bar, 0.97–1.39 m³/min.
Speed follows air demand; the drive exceeds class IES2 to EN 61800-9. Savings of at least 25% of energy costs.
Source: Champion, FM Series
Technology
Two rotors – male and female – turn inside the airend. Air is trapped between the profiles and the casing, the chamber volume shrinks as they rotate and pressure rises. Compression is continuous, so the flow is even and pulsation-free.
Air enters through the intake filter and inlet valve into the chambers between the rotors.
As the rotors turn the chambers shorten and pressure rises evenly. Oil seals, lubricates and carries away heat.
The separator removes the oil from the air and returns it to the circuit. Residual oil is below 3 ppm (L30–L37).
The aftercooler cools the air, condensate is drained, then drying and filtration to the required ISO 8573-1 class.
One motor, four rotors, one semi-integrated casting. The patented FourCore airend from the Centre of Excellence in Simmern (Germany) delivers two-stage efficiency in the size of a single-stage compressor – on L110FC–L290FC it is 8–10% more efficient than a conventional single-stage unit.
CompAir designs and builds its rotors itself, on CNC rotor grinding machines with online laser measurement.
IE3 as standard, IE4 optional (L30–L37) and on L75 e-models and fixed-speed L45–L55, PM IE5 on L45–L55 RS.
Factory-fill lubricant for up to 4,000 hours, automatic belt tensioning (L07–L22) and automatic motor lubrication (L75, FourCore).
Full performance up to 45–46 °C ambient (L07–L22). RS cabinet protected by replaceable inlet filters.
Energy
Compressed air accounts for about 10% (in extreme cases up to 40%) of energy costs in an industrial company, and energy for up to 80% of a compressor's lifecycle cost. This is where the savings are.
Source: CompAir, L15–L22 series
14,080 €electricity cost for 88,000 kWh per year
up to 4,930 €savings with regulated speed (RS) when demand varies
61,600–82,700 kWhof heat you can return to heating or process – worth 5,540 €–7,440 €
Simplified: rated power × hours. Actual consumption depends on load. RS savings of up to 35% and 70–94% recoverable heat are figures from CompAir brochures (Champion states at least 25% RS savings). We make an exact calculation based on a measurement.
About 70% of the electrical energy turns into heat during compression. Without recovery you pay for it twice: once in electricity, then again for the fans or cooling water that remove it. Integrated or retrofit heat recovery saves up to 75% energy.
| CA Energy Recovery Box | Compressor | Recovered heat |
|---|---|---|
| CA1 | 7.5–22 kW | 5.6–17 kW |
| CA2 | 30–37 kW | 23–30 kW |
| CA3 | 45–75 kW | 36–60 kW |
| CA4 | 90–132 kW | 72–106 kW |
Retrofit for oil-lubricated screw compressors of 7.5–132 kW. Source: CompAir.
Control and connectivity
Every series has a controller matched to its size – from simple sequencing of two compressors to a touch screen with web server and IoT.
L02–L06 · L07–L11
L07e–L11e · L15–L22
L30–L37 · L45–L55 · L75 · FourCore
FM2–FM6
FM7–FM22 · FM55–FM75
FM30–FM45
FM90–FM132
The GD Connect 12 Plus module links up to 12 fixed and regulated speed Champion compressors into one system.

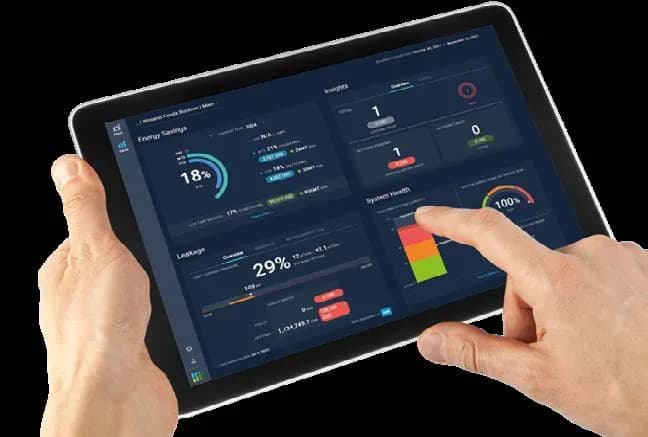

Real-time compressor status and predictive maintenance based on historical data. Standard on the L-Series, free on new compressors and available as a retrofit.
AI-driven optimisation: monitors and adjusts the compressor room and cuts energy costs by up to 20%. Integrated with iConn.
New · Artificial intelligence
Up to 20% less energy, predictive maintenance and real-time control – for compressors of every brand.
Warranty
Under the free Assure warranty the airend is covered for 10 years or up to 44,000 operating hours – whichever comes first.CompAir, Assure terms
10 yearsairend warranty
44,000 hoperating hours
12 yearsfor the new L45–L55 with an Assure agreement
CompAir terms apply. An Assure service agreement (genuine parts, lubricants, factory-trained technicians) extends the warranty. Service is carried out by KOMP-R.
Ask about a service agreementFM Series compressors come with a 24-month standard warranty, and the extended warranty programme raises this to 5 years free of charge.
Champion terms apply. Service by KOMP-R.
Technology comparison
It depends on air demand, operating pattern and how stable the pressure must be.
Most common in small workshops where the compressor does not run all day.
The standard choice for industry and any system with larger or constant air demand.
Agriculture
The CompAir L02/L03 DPP and Champion FM02/FM03 DPP packages for milking robots and parlours: a screw compressor with a 270-litre receiver, desiccant dryer and filtration in one unit.
Fill in a short form and we will prepare a configuration proposal.
