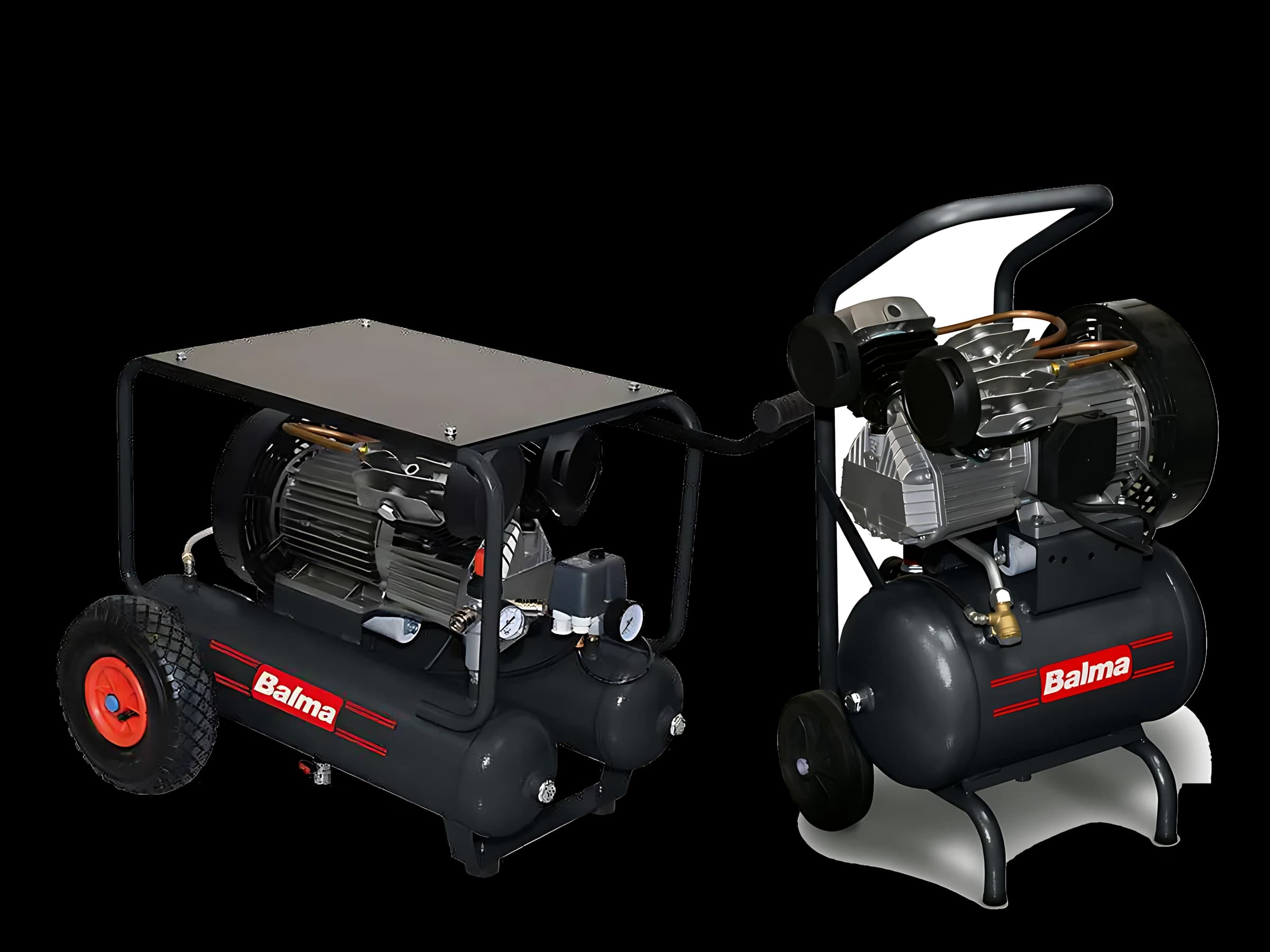

Balma MV30 – 3 HP V-twin piston compressor

Request a QuoteDownload Brochure

A compact, powerful direct-drive twin-cylinder compressor for everyday professional work – aluminium heads, a balanced shaft and easy transport.

Motor power: 2.2 kW (3 HP)
Max. pressure: 10 bar
Intake volume: 330 l/min
Air receiver: 20 / 22 / 50 l
Power supply: 230 V 1~
Motor power: 2.2 kW (3 HP)
Max. pressure: 10 bar
Intake volume: 330 l/min
Air receiver: 20 / 22 / 50 l
Power supply: 230 V 1~
Request a QuoteDownload Brochure
Standard equipment 6 · Options and accessories 1
  • Aluminium headsHeads with large cooling fins for effective heat dissipation.
  • Balanced ductile iron shaftFor smooth running and long life.
  • Oversized crankcaseMore oil for lower temperature and longer pump life.
  • Motor thermal protectionSwitches the motor off on overheating and resets automatically once it cools.
  • Stainless steel reed valvesDurable stainless steel valves.
  • Wheels and handleMove the compressor easily to wherever you need it.
ParameterMV30 20 PCM3MV30 50 CM3MV30 11+11 CM3
Part number112109085211213602551121440242
PumpMV30
Air receiver [l]205011+11
Versionon wheels
Intake volume [l/min]330330330
Power [HP / kW]3 / 2.23 / 2.23 / 2.2
Speed [min⁻¹]1450
Power supply230 V 1~ 50 Hz
Max. pressure [bar]101010
Compressionsingle-stage
Lubricationoil-lubricated
Drivedirect
Dimensions (L × W × H) [mm]520 × 430 × 790800 × 380 × 680770 × 610 × 540
Weight [kg]436050

Benefits

3 HP V-twin

Direct-driven pump with 330 l/min intake volume on a 230 V single-phase supply.

Effective cooling

Special fan blades and large fins on the aluminium heads.

For building sites and painting

Compact and powerful, with wheels and handle for everyday professional work.

Smooth running

Balanced ductile iron shaft, oversized crankcase and stainless steel valves.

Workers with tools on a construction site

Construction and field work

Mobility

Wheeled and engine-driven compressors for air tools where there is no mains power. A petrol or diesel engine lets you work anywhere.

Spray painting steel beams with a spray gun

Spray painting and finishing

Spraying

Steady pressure and enough air for spray guns. For demanding finishes, add a dryer and fine air filtration.

Car repair workshop with vehicles on lifts

Car repair workshops

Air tools

Air for impact wrenches, ratchets, blow guns and tyre inflation. The receiver covers short peaks in demand without a pressure drop.

Stacked timber boards in a joinery workshop

Joinery and woodworking

Staplers and nailers

For staplers, nailers, pneumatic presses and dust blow-off. Low-speed belt-driven compressors handle a full working day.

Compressors

Tell us your requirements and we will propose the right compressor.

Fill in a short form and we will prepare a configuration proposal.

Sizing based on actual consumption
Energy optimization
Installation and service
Contact form
* required fields
Your message is sent directly to our email inbox.
Call EmailView solutions
Where to find us
Directions
Pod lipami 4 · 1370 Logatec, Slovenija

Related piston compressors

Compare related Bambi, Worthington Creyssensac and Balma series.

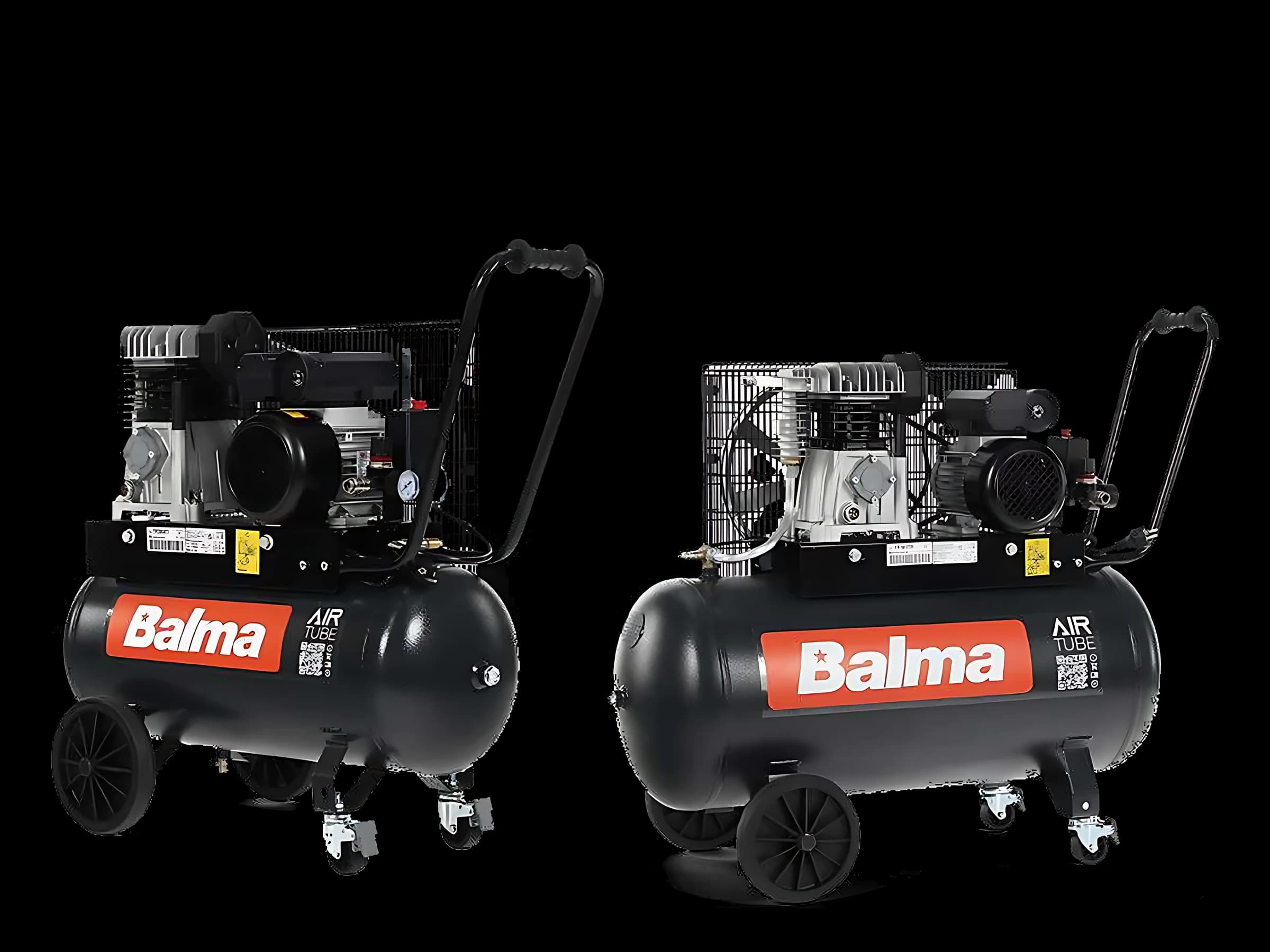

Balma NS12S belt-driven piston compressors

Balma NS12S

Oil-lubricated

Belt-driven compressors, 2–3 HP, 10 bar, 255–320 l/min, 50–270 l receiver.

More about the device→

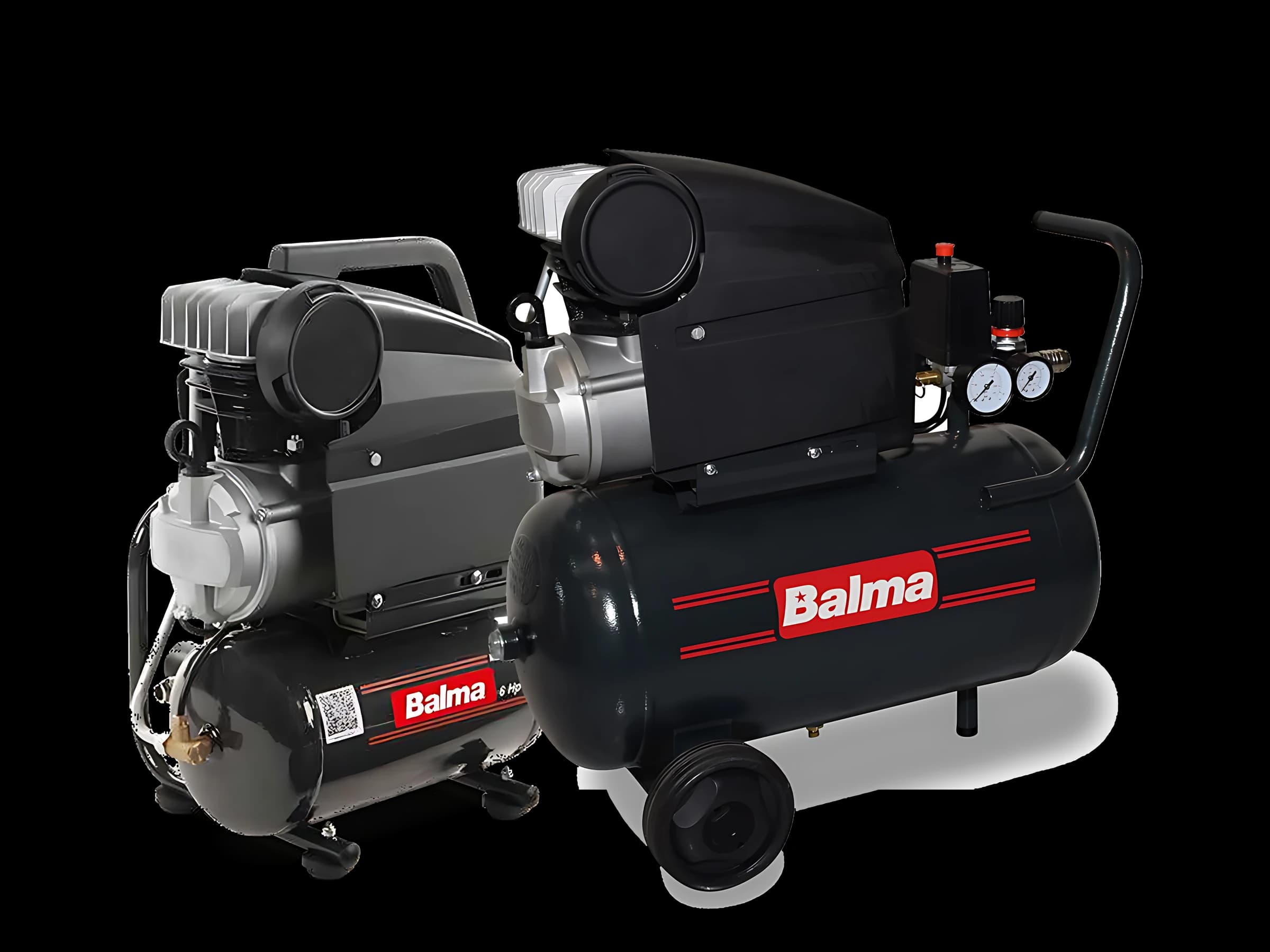

Balma MF15 and MS20 direct-drive piston compressors

Balma MF15 / MS20

Oil-lubricated and oil-free

Direct-drive compressors, 1.1–1.5 kW, 8–10 bar, oil-free or oil-lubricated.

More about the device→

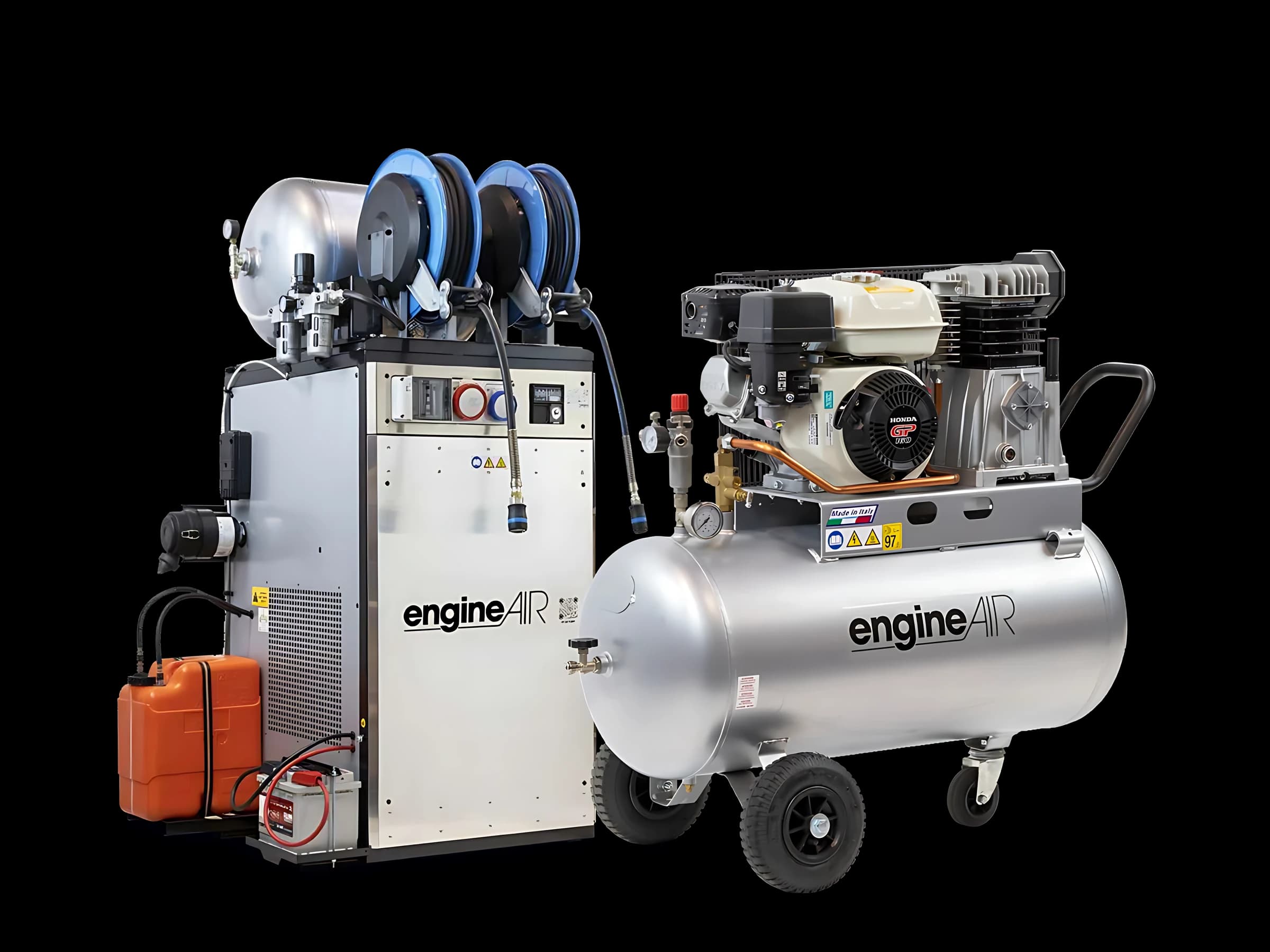

Balma engineAIR engine-driven piston compressors
