More air at lower speed
Up to 486 l/min intake volume – for tradespeople and small businesses.
Balma NS19S – 3–4 HP belt-driven piston compressors
A more powerful belt-driven range with lower pump speed for a longer service life – for tradespeople, service workshops and smaller production.
| Motor power: 2.2–3 kW (3–4 HP) |
| Max. pressure: 10 bar |
| Intake volume: 393–486 l/min |
| Air receiver: 50–270 l |
| Power supply: 230 V 1~ or 400 V 3~ |
| Motor power: 2.2–3 kW (3–4 HP) |
| Max. pressure: 10 bar |
| Intake volume: 393–486 l/min |
| Air receiver: 50–270 l |
| Power supply: 230 V 1~ or 400 V 3~ |
- Aluminium headsHeads with large cooling fins for effective heat dissipation.
- Cast-iron cylindersWear-resistant for a long service life.
- Stainless steel reed valvesDurable stainless steel valves.
- Oversized crankcaseMore oil for lower temperature and longer pump life.
- Braked wheelsLarge rear wheels and braked swivel front wheels.
- Pressure switchStarts and stops the compressor automatically based on receiver pressure.
| Parameter | NS19S/50 CM3 | NS19S/50 CT3 | NS19S/100 CM3 | NS19S/100 CT3 | NS19S/150 CM3 | NS19S/150 CT3 | NS19S/200 CM3 | NS19S/200 CT3 | NS19S/200 CT4 | NS19S/270 CM3 | NS19S/270 CT4 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part number | 4116028040 | 4116028042 | 4116028268 | 4116028266 | 4116028521 | 4116028520 | 4116028600 | 4116028602 | 4116028598 | 4116028730 | 4116028728 |
| Pump | NS19S | ||||||||||
| Air receiver [l] | 50 | 50 | 100 | 100 | 150 | 150 | 200 | 200 | 200 | 270 | 270 |
| Version | on wheels | ||||||||||
| Intake volume [l/min] | 393 | 393 | 393 | 393 | 393 | 393 | 393 | 393 | 486 | 393 | 486 |
| Power [HP / kW] | 3 / 2.2 | 3 / 2.2 | 3 / 2.2 | 3 / 2.2 | 3 / 2.2 | 3 / 2.2 | 3 / 2.2 | 3 / 2.2 | 4 / 3 | 3 / 2.2 | 4 / 3 |
| Speed [min⁻¹] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | 1300 | 1050 | 1300 |
| Power supply | 230 V 1~ 50 Hz | 400 V 3~ 50 Hz | 230 V 1~ 50 Hz | 400 V 3~ 50 Hz | 230 V 1~ 50 Hz | 400 V 3~ 50 Hz | 230 V 1~ 50 Hz | 400 V 3~ 50 Hz | 400 V 3~ 50 Hz | 230 V 1~ 50 Hz | 400 V 3~ 50 Hz |
| Max. pressure [bar] | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Compression | single-stage | ||||||||||
| Lubrication | oil-lubricated | ||||||||||
| Drive | belt | ||||||||||
| Dimensions (L × W × H) [mm] | 992 × 422 × 843 | 992 × 422 × 843 | 1123 × 502 × 930 | 1123 × 502 × 930 | 1391 × 500 × 978 | 1391 × 500 × 978 | 1423 × 572 × 1027 | 1423 × 572 × 1027 | 1446 × 572 × 1027 | 1495 × 588 × 1079 | 1495 × 588 × 1079 |
| Weight [kg] | 56 | 87 | 72 | 67 | 96 | 96 | 129 | 129 | 129 | 125 | 121 |
Benefits
Robust build
Aluminium heads, cast-iron cylinders, stainless steel reed valves and an oversized crankcase.
Belt drive
The pump turns slower than the motor: less wear, lower temperature and quieter operation.
Easy to move
Rubber rear wheels and braked front wheels.
Car repair workshops
Air toolsAir for impact wrenches, ratchets, blow guns and tyre inflation. The receiver covers short peaks in demand without a pressure drop.
Tyre services
Tyre inflationFitting and inflating car and van tyres. For truck and tractor tyres, choose a two-stage compressor rated up to 15 bar.
Metalworking
ProductionWorking and control air for machines, fixtures, pneumatic cylinders and blow-off. Two-stage compressors deliver more air at higher pressure.
Joinery and woodworking
Staplers and nailersFor staplers, nailers, pneumatic presses and dust blow-off. Low-speed belt-driven compressors handle a full working day.
Compressors
Tell us your requirements and we will propose the right compressor.
Fill in a short form and we will prepare a configuration proposal.
Sizing based on actual consumption
Energy optimization
Installation and service
Where to find us
DirectionsPod lipami 4 · 1370 Logatec, Slovenija
Related piston compressors
Compare related Bambi, Worthington Creyssensac and Balma series.
Balma NS12S
Oil-lubricatedBelt-driven compressors, 2–3 HP, 10 bar, 255–320 l/min, 50–270 l receiver.
More about the device→
Balma NS31S
Oil-lubricatedTwo-stage compressors, 3–5.5 HP, up to 11 bar, up to 595 l/min, 100–270 l receiver.
More about the device→

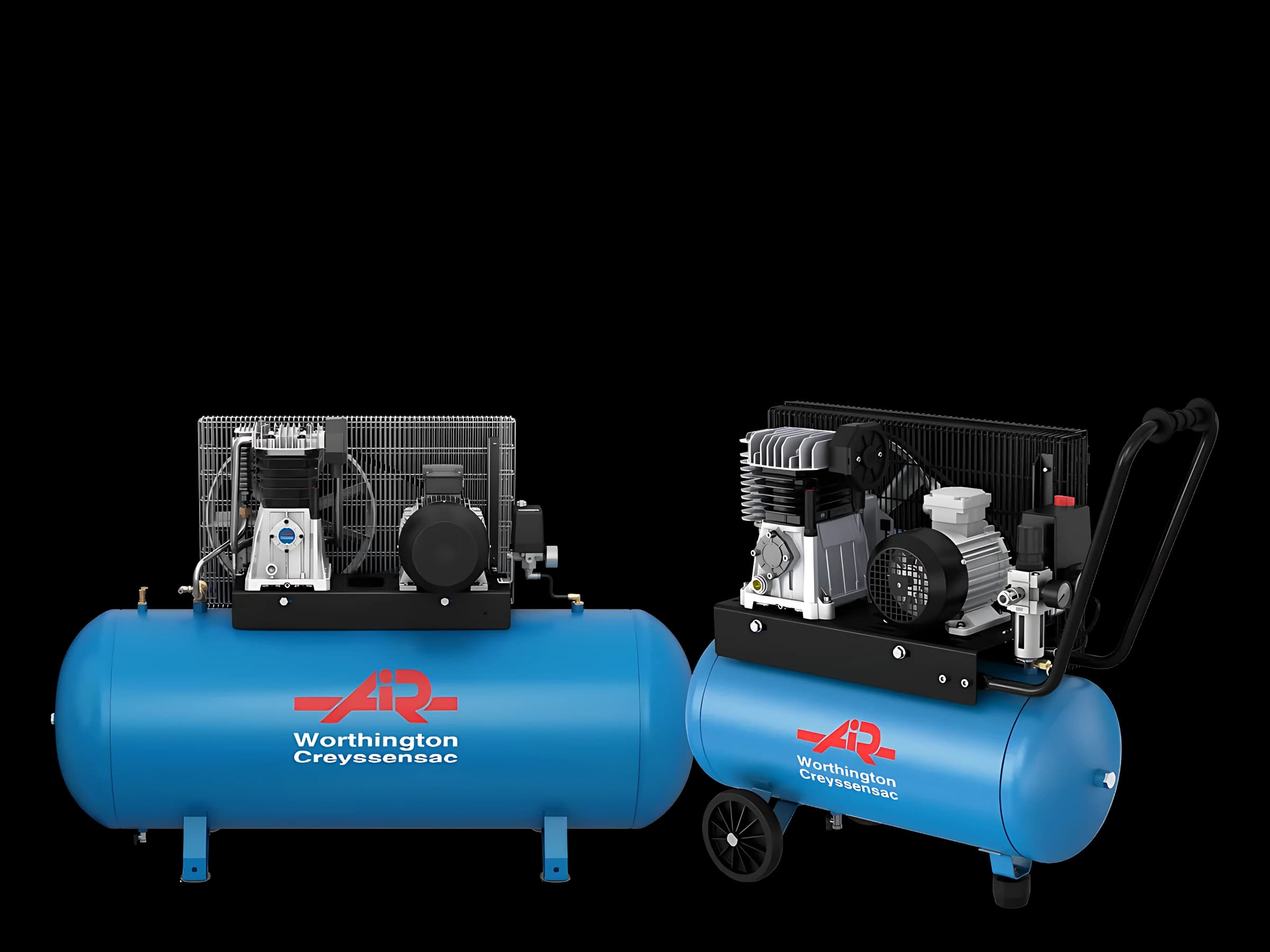

Worthington Creyssensac DIXAIR PRO
