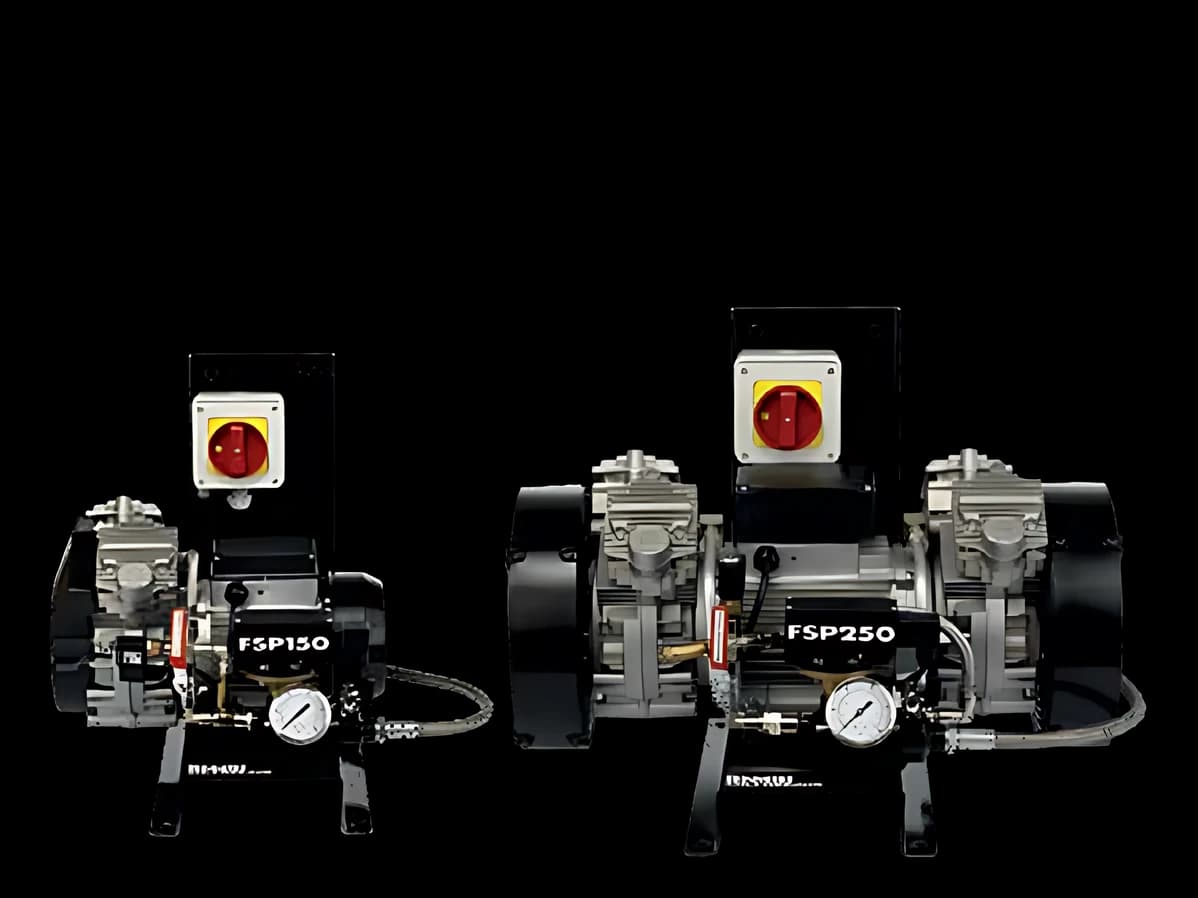

Bambi FS – compressors for sprinkler systems

Oil-free compressors for charging and maintaining pressure in dry sprinkler systems. Every model is a complete automatic system with safety and non-return valves.

Motor power: 1.1–1.84 kW (1.5–2.5 HP)

Pressure switch: 0–6 bar

Displaced air: 175–300 l/min

Power supply: 230 V 1~ or 400 V 3~

Motor power: 1.1–1.84 kW (1.5–2.5 HP)

Pressure switch: 0–6 bar

Displaced air: 175–300 l/min

Power supply: 230 V 1~ or 400 V 3~

Request a Quote Download Brochure

Standard and optional equipment

Standard equipment 7 · Options and accessories 2

Flow restrictorControlled air make-up to maintain pressure in the sprinkler system.
0–6 bar pressure switchOn FSP versions, adjustable down to a 0.2 bar differential for precise control.
0–6 bar glycerine gaugeA glycerine-filled gauge gives a steady reading even under vibration.
400 mm braided hose with ½" fittingsFlexible connection between the compressor and the sprinkler system.
Safety valveProtects the receiver and system against overpressure.
Non-return valveStops air flowing back from the system into the compressor.
Mounting templateThe supplied template for 10.5 mm holes makes floor or wall mounting easy.

Technical data

Parameter	FSB150	FSB200	FSP150	FSP200	FSP250
Displaced air at 0 bar [l/min]	175	220	175	220	300
Displaced air at 2 bar [l/min]	153	178	153	178	265
Restricted flow at 0 bar [l/min]	119	141	119	141	141
Restricted flow at 2 bar [l/min]	113	136	113	119	119
Power [HP / kW]	1.5 / 1.1	2 / 1.5	1.5 / 1.1	2 / 1.5	2.5 / 1.84
Power supply	230 V 1~ / 400 V 3~
Compression	single-stage
Lubrication	oil-free
Drive	direct
Noise level [dB(A)]	74
Dimensions (L × W × H) [mm]	560 × 330 × 300	560 × 330 × 300	390 × 410 × 460	420 × 410 × 460	600 × 410 × 460
Weight [kg]	27	31	25	29	38
Pressure switch	0–6 bar (adjustable)

Benefits

Designed to LPC requirements

FS compressors are designed for dry sprinkler systems to LPC requirements and comply with PED 97/23/EC.

Controlled pressure maintenance

All models have a flow restrictor for system make-up; FSP versions add a finely adjustable pressure switch.

Vee Twin oil-free pump

Direct drive and an oil-free tilting-piston pump: clean air, low noise and minimal maintenance.

Floor or wall mounted

Compact, robust design for tight spaces; a mounting template is supplied.

Dry sprinkler systems

Fire protection

Maintaining pressure in dry sprinkler pipework in unheated warehouses, car parks and canopies where water in the pipes would freeze.

Production hall with industrial machines

General industry

Working and control air

For smaller plants and maintenance workshops with occasional or intermittent demand. For continuous, high demand a screw compressor is the better choice.

Food and beverage

No oil contamination

Air for packaging machines, beverage filling and pneumatic valves where oil must never touch the product. Oil-free compressors remove that risk.

Control and automation

Control air

Constant pressure for pneumatic valves, cylinders, automatic doors and control systems. Quiet compressors with filter and regulator can sit next to the machine.
